Diagram 137/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

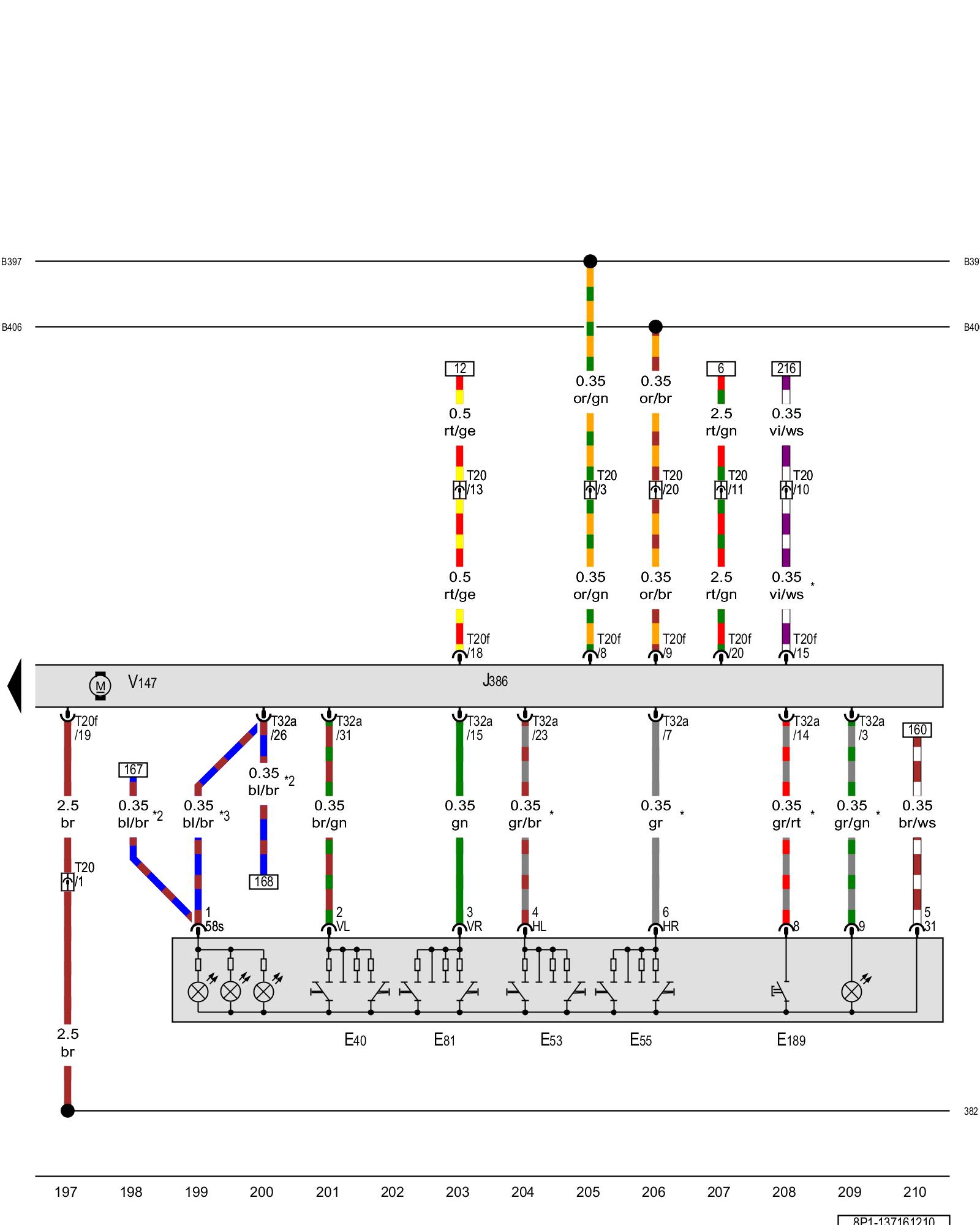

Central window regulator switch in driver door, Driver window regulator motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E40 - Left front window regulator switch

E53 - Left rear window regulator switch in driver door

E55 - Right rear window regulator switch in driver door

E81 - Right front power window switch in driver door

E189 - Central window regulator switch in driver door

J386 - Driver door control module Control Modules in Interior Of Vehicle

T20 - 20-pin connector, on the left A-pillar

T20f - 20-pin connector

T32a - 32-pin connector

V147 - Driver window regulator motor Locations

(382) - Ground connection 17 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Only for vehicles with 5-door equipment

*2 - Only for vehicles with interior monitoring

*3 - Only for vehicles without interior monitoring

Previous Diagram 137/15 (Tracks 183-196)

Next Diagram 137/17 (Tracks 211-224)
