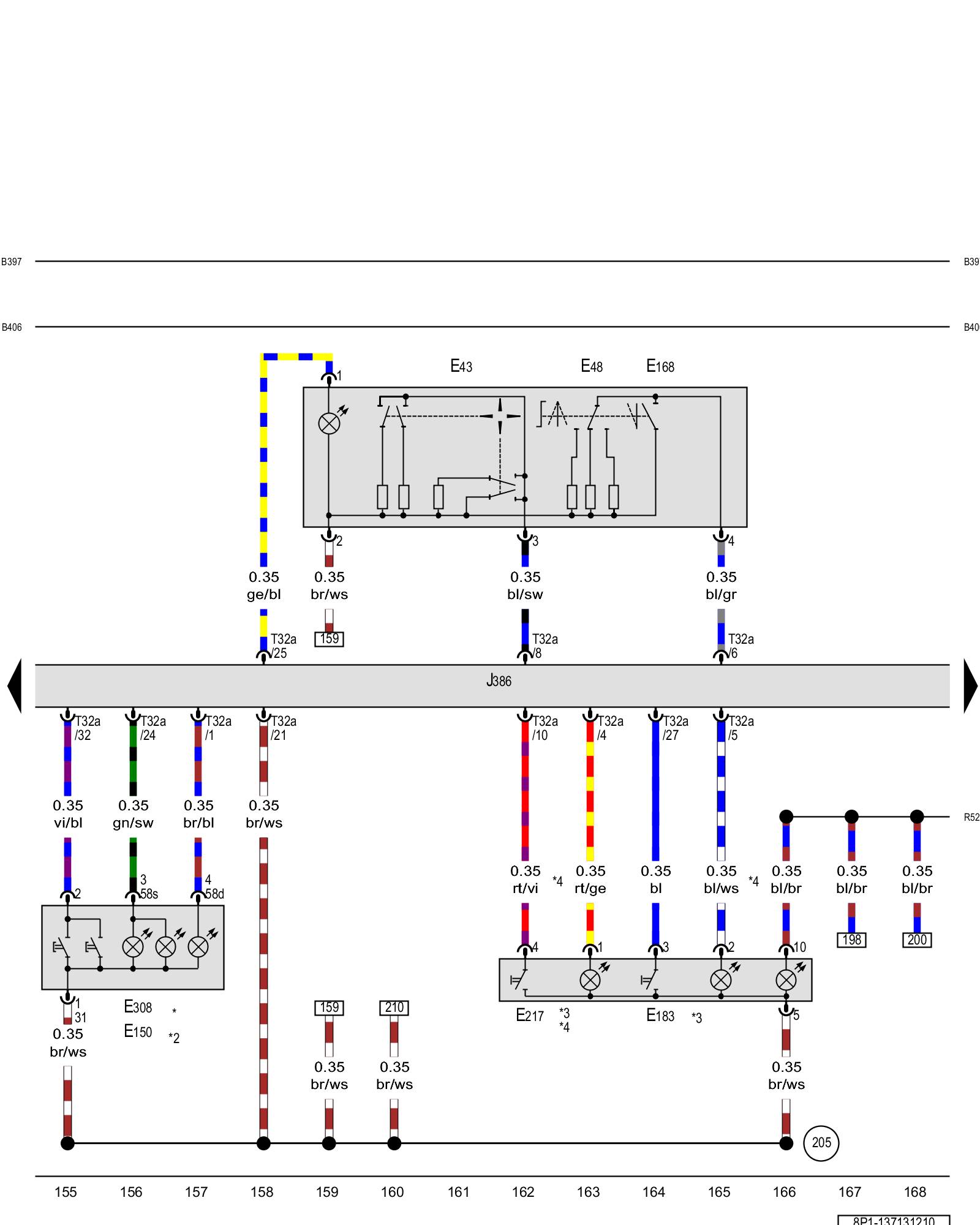

Diagram 137/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Mirror adjusting switch, Folding mirror adjustment switch, Alarm system deactivation switch, Driver interior locking button





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E43 - Mirror adjusting switch

E48 - Mirror selector switch

E150 - Driver interior locking switch

E168 - Folding mirror adjustment switch

E183 - Interior monitoring switch

E217 - Alarm system deactivation switch

E308 - Driver interior locking button

J386 - Driver door control module Control Modules in Interior Of Vehicle

T32a - 32-pin connector

(205) - Ground connection (in driver door wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

(R52) - Connection (58s) (in driver door wiring harness)

* - Running change

*2 - Omitted as a running change

*3 - Only for vehicles with interior monitoring

*4 - Through April 2010
