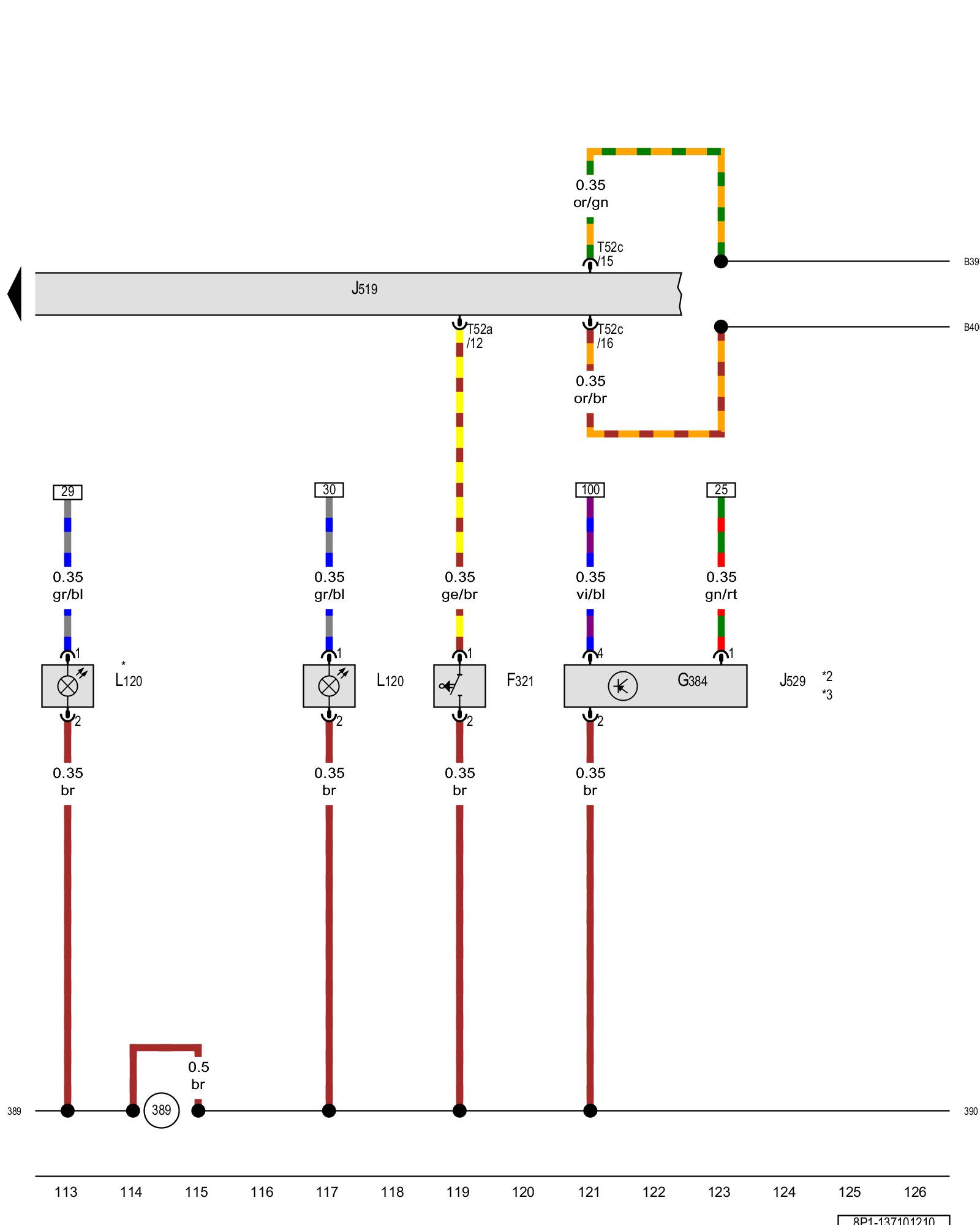

Diagram 137/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Parking brake contact switch, Inclination sensor/anti-theft system control module, Storage compartment illumination bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F321 - Parking brake contact switch

G384 - Vehicle inclination sensor Locations

J519 - Vehicle electrical system control module Control Modules in Interior Of Vehicle

J529 - Inclination sensor/anti-theft system control module Locations Control Modules in Interior Of Vehicle

L120 - Storage compartment illumination bulb

T52a - 52-pin connector

T52c - 52-pin connector

(389) - Ground connection 24 (in main wiring harness)

(390) - Ground connection 25 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

* - Omitted as a running change

*2 - Only for vehicles without US equipment

*3 - For vehicles with anti-theft alarm system
