Rear Door Trim, Speaker Trim

Speaker Trim

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)





Removing





- Switch off ignition and remove ignition key.

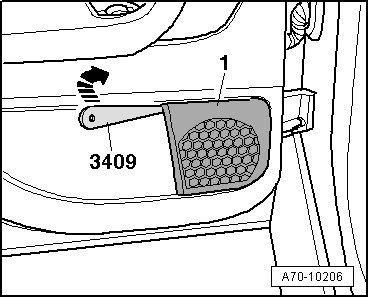

- Pry speaker trim - 1 - out of door trim - arrow - with (3409).

Installation

To install, perform the steps used in removal in reverse order.
