Front Door Trim

Speaker Trim

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)





Removing





- Switch off ignition and remove ignition key.

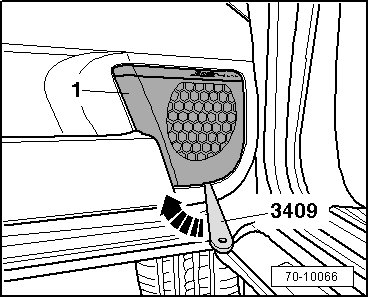

- Pry speaker trim - 1 - out of door trim with (3409).

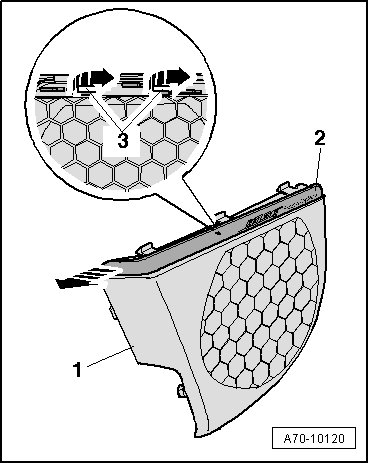

- If present, raise trim molding locking spring - 3 - upward - arrows -.





- Carefully slide trim molding - 2 - in - direction of arrow - off speaker trim - 1 -.

Installation

Installation is reverse of removal, but note the following:

- Position trim molding and carefully slide it onto speaker trim until it engages.

- First engage speaker trim at storage compartment and then press evenly into door trim.
