Radio/Navigation Display Control Module

Radio/Navigation Display Control Module

Special tools, testers and auxiliary items required

• Radio Removal Tool (T10057)

- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine using the Vehicle Diagnosis, Testing and Information System (VAS 5051).

- Switch off all electrical consumers.

- Remove the key.

Removing

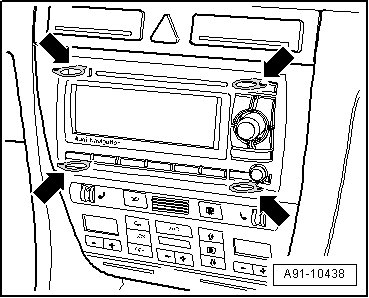

- Place (T10057) - arrows - in release slits on Radio/Navigation Display Control Module (J503) until they engage. Points on grip eyes face outward.





- Remove radio/navigation display control module from instrument panel.

- Release connectors on radio/navigation display control module and remove it.

- Remove (T10057) by pressing locking tabs on radio/navigation display control module.

Installing

- Connect all harness connectors.

- Slide radio/navigation display control module straight into instrument panel until it engages in installation frame.
