Telephone Baseplate on Instrument Panel

Telephone Baseplate on Instrument Panel

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the cellular telephone (R54) from the telephone baseplate and unclip it.

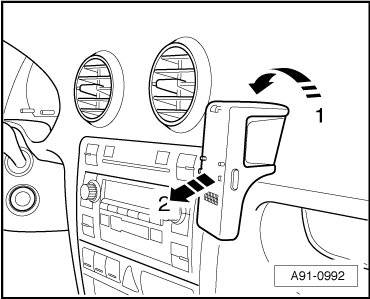

- Turn the telephone baseplate (R126) in - direction of arrow 1 - and then remove it in - direction of arrow 2 - from the instrument panel.

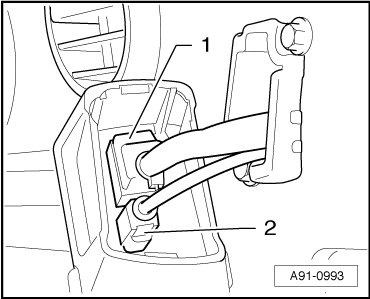

- Disconnect the connectors - 1 - and - 2 - and remove the telephone baseplate.





Installing

- Connect all the connectors.

- Push the telephone baseplate onto the mounting plate until it engages.
