Telephone Baseplate In Center Armrest

Telephone Baseplate in Center Armrest

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove cellular telephone (R54) from telephone baseplate (R126) and unclip it.

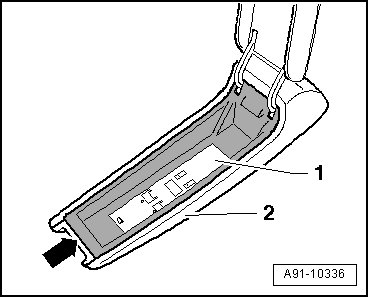

- Beginning at front - arrow -, carefully pry storage compartment - 1 - out of trim - 2 -.

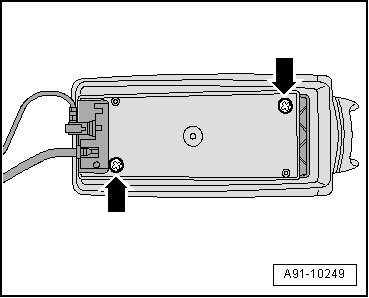

- Remove bolts - arrows - (2 Nm) from underside of storage compartment.

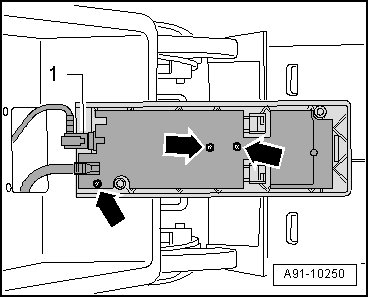

- Disconnect connector - 1 - and remove bolts - arrows - (1 Nm).





- Disconnect remaining connectors and remove telephone baseplate.

Installing

- Install in reverse order of removal.
