Ultrasonic Sensor: Service and Repair

Interior Monitoring Sensor

Component location of interior monitoring sensor (G273) is located in front interior/reading lamp.

Removing






- Remove front interior/reading lamp. Refer to => [ Front Interior Lamp/Reading Lamp ] Front Interior Lamp/Reading Lamp.

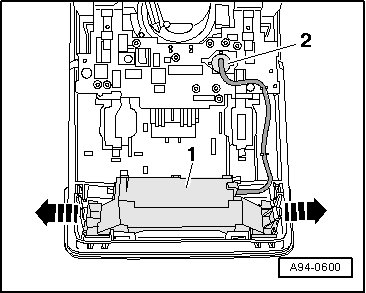

- Release retaining clips - arrows - and remove interior monitoring sensor - item 1 - and - item 2 - from interior/reading lamp.

Installing

Install in reverse order of removal, noting the following:

- Connect electrical connector.

- Install front interior/reading lamp. Refer to => [ Front Interior Lamp/Reading Lamp ] Front Interior Lamp/Reading Lamp.
