Driveshaft With Non-Separable Center Support, From 05.07, Installing

Driveshaft with Non-Separable Center Support, from 05.07, Installing

Installation is performed in the reverse order of removal while observing the following:

- Install all parts marked to each other in original positions.

- Install driveshaft on final drive so that both markings - arrows - align.






- Tighten the driveshaft. Tightening specifications => [ (Item 4) Bolt ] Driveshaft With Non-Separable Center Support, From 05.07 and => [ (Item 9) Bolt ] Driveshaft With Non-Separable Center Support, From 05.07.

Install the Center Bearing Free of Tension as Follows:






• All driveshaft bolts are tightened.

- Align the intermediate bearing in its elongated holes so the driveshaft or bearing is not under stress.

- Tighten the combination bolts - 1 -. The combination bolts - 1 - must lie inside the heat shield centering tabs - 2 -. Tightening specification => [ (Item 6) Bolt ] Driveshaft With Non-Separable Center Support, From 05.07.

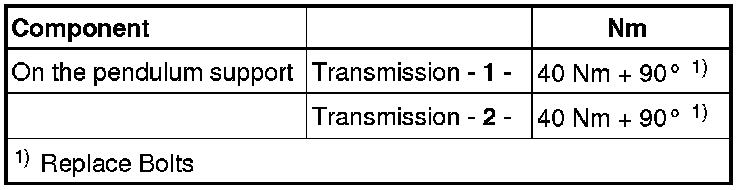

- Tighten the pendulum support with new bolts. For the correct tightening specifications.











- Install the exhaust system.






- Install the crossmember for the underbody - arrows -, if equipped. Refer to "Underbody Trim Panels".

- Install the noise insulation.
