Electric and Electronic Components and Installation Locations, Rear Final Drive 02D/0AV (Haldex-Clutch Generation II)

Electric and Electronic Components and Installation Locations, Rear Final Drive 02D/0AV (Haldex-Clutch Generation II)

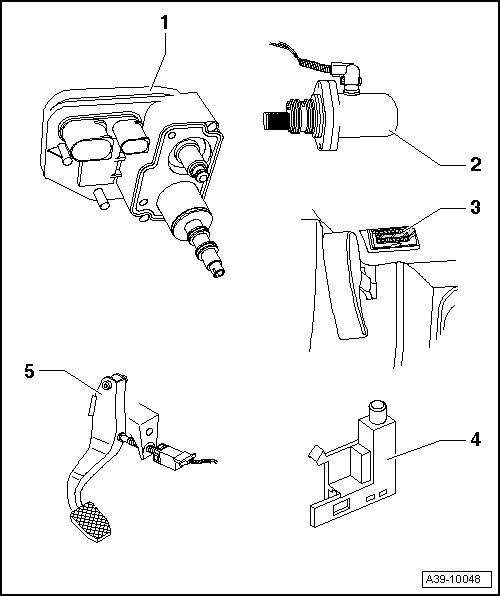

1 All Wheel Drive (AWD) Control Module (J492)

• Comprises a unit together with Haldex clutch control valve (N373)

• A pressure sensor is also located in the control module

• Removing and installing, refer to => [ All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview ] All Wheel Drive Control Module (J492), Rear Final Drive 02D/0AV (Haldex-Clutch Generation II) Overview

• Important signals are transmitted from the engine control module and ABS control module (J104) via data BUS to the AWD control module.

2 Haldex Clutch Pump (V181)

• Can be checked in "Guided Fault Finding" using the vehicle tester

• Removing and Installing, refer to => [ Haldex Clutch Pump (V181), Final Drive 02D/0AV ] Haldex Clutch Pump (V181), Final Drive 02D/0AV

3 Data Link Connector (DLC)

• Installed location: Front left footwell, near hood opener

4 Parking Brake Indicator Lamp Switch (F9)

• Can be checked in "Guided Fault Finding" using the vehicle diagnostic tester

5 Brake Lamp Switch (F)

• Can be checked in "Guided Fault Finding" using the vehicle diagnostic tester

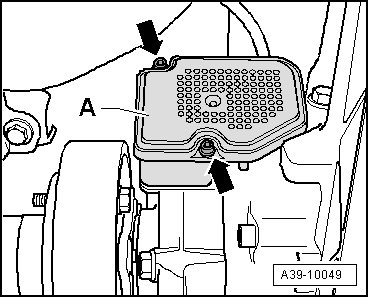

All Wheel Drive Control Module (J492)





Installed location: The control module - A - is located at the rear final drive in the front left area.

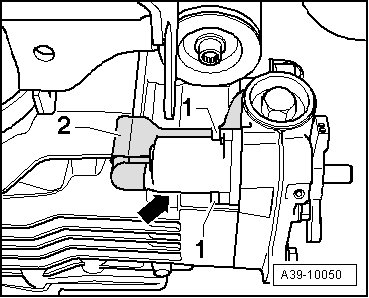

Haldex Clutch Pump (V181)





Installed location: The Haldex clutch pump - arrow - is located on the rear final drive in the front right area.

Brake Lamp Switch (F)





Installed location: Brake lamp switch is located on pedal assembly over brake pedal.

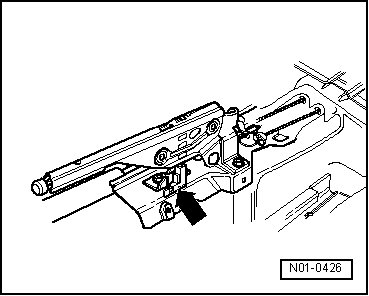

Parking Brake Switch (F9)





Installed location: The switch - arrow - is installed on the parking brake lever.
