Selector Lever Handle With Front Locking Button and Selector Lever Scale Illumination Bulb (L101) Overview

Selector Lever Handle with Front Locking Button and Selector Lever Scale Illumination Bulb (L101) Overview

Overview

• => [ Selector Lever Handle with Front Locking Button ] Selector Lever Handle with Front Locking Button

• => [ Selector Lever Boot, Separating from Handle ] Selector Lever Boot, Separating from Handle

• => [ Selector Lever Handle Locking Button, Bringing into Installation Position ] 02EA (S-Tronic) Transmission

• => [ Selector Lever Scale Illumination Bulb (L101) ] Selector Lever Scale Illumination Bulb (L101)

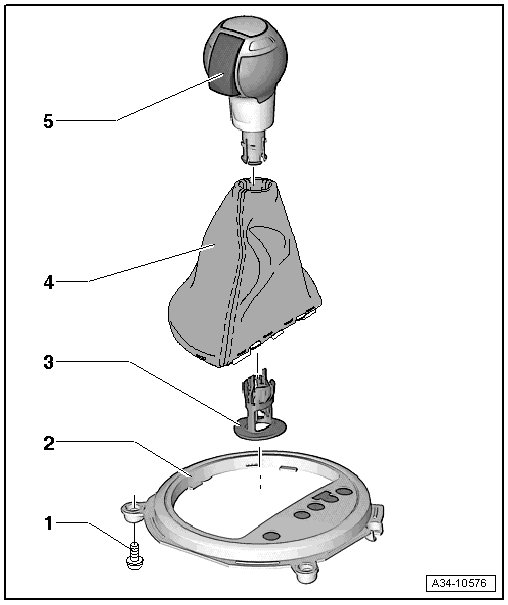

1 Bolt

• 1 Nm

2 Selector Lever Boot Trim with Selector Lever Scale Illumination Bulb (L101)

• Removing and installing, refer to => [ Selector Lever Scale Illumination Bulb (L101) ] Selector Lever Scale Illumination Bulb (L101)

3 Guide

4 Selector Lever Boot

• Selector lever boot, separating from handle, refer to => [ Selector Lever Boot, Separating from Handle ] Selector Lever Boot, Separating from Handle

5 Selector Lever Handle with Front Lock Button

• Refer to => [ Selector Lever Handle with Front Locking Button ] Selector Lever Handle with Front Locking Button

• Refer to => [ Selector Lever Handle Locking Button, Bringing into Installation Position ] 02EA (S-Tronic) Transmission
