02EA (S-Tronic) Transmission, Selector Mechanism From 11.09

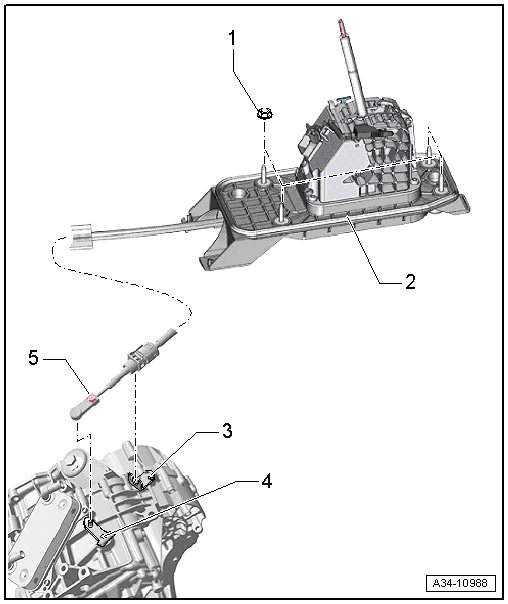

Selector Mechanism Overview






1 Nut

• 8 Nm

• For selector mechanism to body

• Quantity: 4

2 Selector Mechanism Function Unit

• With a permanent circuit board for the selector mechanism

• With integrated selector lever sensor system control module (J587) with selector lever (E313) , tipronic switch (F189) , selector lever park position lock switch (F319) and selector lever solenoid (N110).

• Check using Guided Fault Finding in the vehicle diagnostic tester

• With integrated selector lever sensor system control module with selector lever, tipronic switch, selector lever park position lock switch and selector lever solenoid can only be replaced with the mechanism function of the selector mechanism, refer to => [ Selector Mechanism ] Selector Mechanism.

• Selector lever cable can only be replaced with the selector mechanism, refer to => [ Selector Mechanism ] Selector Mechanism.

• Perform selector mechanism emergency release, refer to => [ Selector Mechanism Emergency Release, Moving from P ] Selector Mechanism Emergency Release, Moving From P.

• Removing and installing, refer to => [ Selector Mechanism ] Selector Mechanism

• Do not lubricate the selector lever cable

3 Cable Mounting Bracket

• For selector lever cable

4 Parking Lock Lever

5 Bolt

• 15 Nm

• Selector lever cable adjusting screw
