02EA (S-Tronic) Transmission, Selector Mechanism From 11.09

Selector Mechanism Emergency Release, Moving from P

• The shift lock solenoid (N110) locks the selector lever in the position "P". The selector lever can shifted out of "P" with ignition on or motor started, separate brake pedal and pressed button on the selector lever head. Refer to => [ Selector Mechanism and Ignition Key Removal Lock, Checking ] 02EA (S-Tronic) Transmission.

• It is not possible to move the selector lever out of "P" if the voltage supply to the shift lock solenoid is interrupted (the battery is discharged or a fuse is faulty) or if the solenoid is faulty. The vehicle cannot be moved because the parking lock is set.

If this is not the case:

- Check fuses.

- Check the battery voltage.

If the selector lever still cannot switch out of "P", the emergency release of the solenoid can be executed. If the selector lever is then switched back into "P", this is locked again in the position "P".

Procedure






- Set the parking brake.

- Unclip the selector lever boot and remove it - arrows -.

- Stretch the selector lever boot upward over the handle.

• The handle for the selector lever, however, does not need to be removed to use the emergency release.

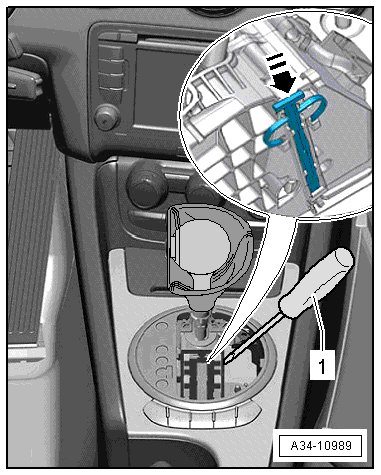

- Unlock the shift lock solenoid in direction of - arrow - with a screwdriver - 1 - and hold it in this position.






The selector mechanism function unit can only be replaced complete. This means if components of the selector mechanism function unit are damaged, it must be completely replaced.

• The solenoid releases the selector lever.

- When the solenoid is free, press the button in the selector lever handle and move the selector lever out of "P".

• If the selector lever is not switched back into "P", the solenoid for the shift block will be automatically blocked in the position "P". The solenoid must be released again.
