Selector Mechanism Connectors, Checking

Selector Mechanism Connectors, Checking

Determine the cause of the fault using Guided Fault Finding before servicing or checking the connector using the vehicle diagnostic tester.

Check all the control modules for faults stored in the Diagnostic Trouble Code (DTC) memories and erase them if necessary before checking the connectors using the vehicle diagnostic tester.

- Checking the connections.

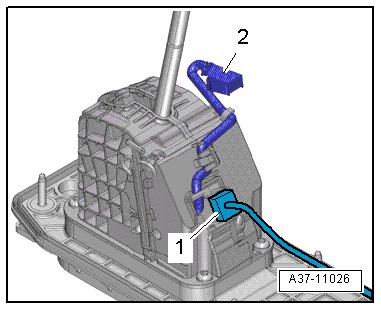

1. Electrical connector for connections from the function unit of the switch mechanism to the transmission (with CAN lines) and to the shift lock solenoid (N110) and selector lever park position lock switch (F319).

2. Connector to the selector lever boot trim
