02E Automatic Transmission

Selector Mechanism Connectors, Checking

If selector mechanism malfunctions, proceed as follows:

- Connect Vehicle Diagnosis, Testing, and Information System (VAS 5051B).

- Check DTC memory - complete system, if necessary, determine malfunction in guided fault finding and correct.

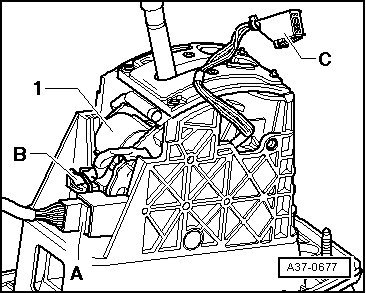

A 10-pin connector for connecting wires from selector mechanism to the transmission (with CAN-Bus lines)
B 4-pin connector to shift lock solenoid (N110) and selector lever park position lock switch (F319)
C 10-pin connector to selector mechanism cover
