Fluid - ASMT: Description and Operation

Transmission Oil Overview

Transmission Fluid Drain Plug - A -






• Depending on the date of manufacture, only on older transmissions

• 45 Nm

• Seal, replacing

Transmission Fluid Check Plug - B -

• 45 Nm

• Seal, replacing

Overflow Tube - C -






The overflow tube - C - is screwed into the opening of the inspection plug.

• 3 Nm

Measure the Length of the Bleed Pipe on the Adapter for Oil Filling (VAS 6262 A). Shorten it if Necessary.

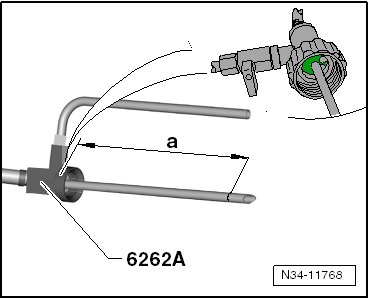

It is necessary to shorten the bleed pipe on the (VAS 6262 A) to dimension - a - so that it cannot touch the bottom of the oil container.

• - a - = 210 mm

• Dimension - a - is measured starting from the shaft (the green surface) on the (VAS 6262 A).

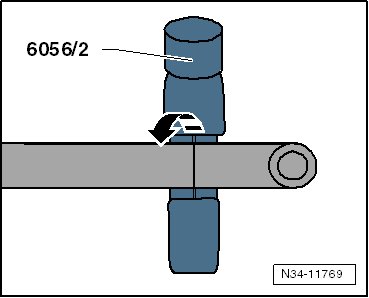

- Mark the dimension on the bleed pipe and then shorten it using pipe cutter (6056/2).






- Clean the (VAS 6262 A).
