Gears, Shafts

Fastener Tightening Specifications






Oil Pan - Tightening Specification and Sequence






- Tighten the bolts - arrows - diagonally in steps to 16 Nm.

Direct Shift Gearbox (DSG) Transmission Mechatronic (J743) - Tightening Specification and Sequence






- Tighten the bolts in 2 steps in the following sequence: - 1 through 10 -:






Transmission Oil Pump - Tightening Specification and Sequence

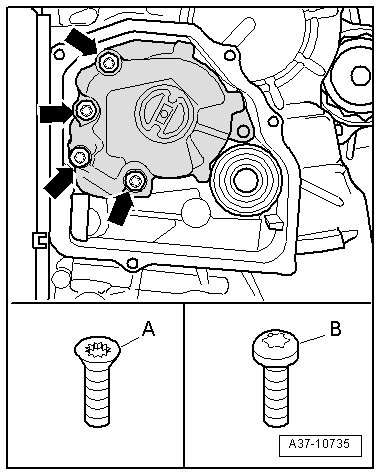

- Tighten bolts - arrows - in a diagonal sequence (different bolts depending on version):

Countersunk Bolts - A -:

- Tighten countersunk bolts to 8 Nm.

Flat Head Bolts - B -:

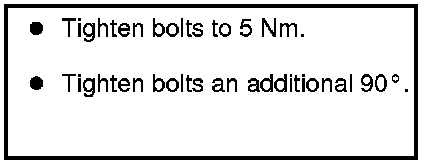

- Tighten flat head bolts in 2 stages as follows:






Transmission Oil Pump Cover - A - - Tightening Specification and Sequence






- Tighten the bolts - arrows - diagonally in steps to 8 Nm.

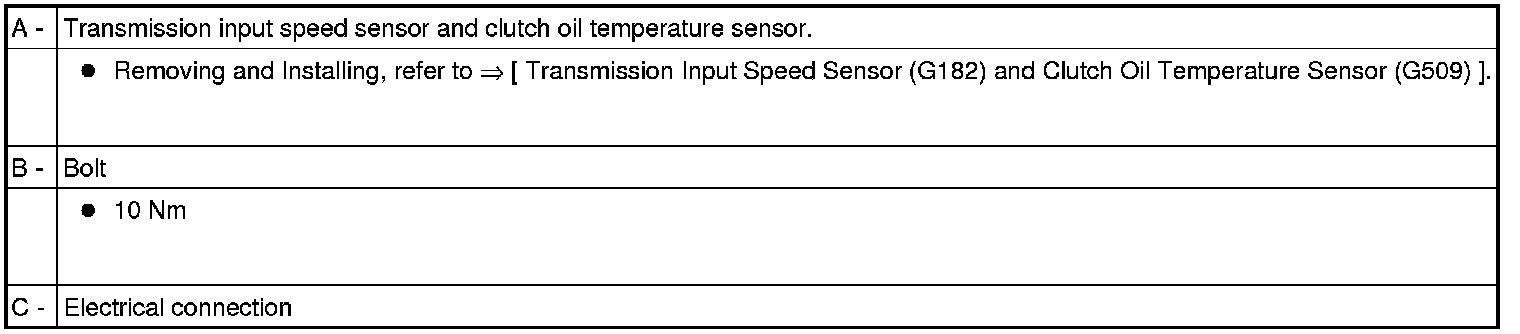

Transmission Input Speed Sensor (G182) and Clutch Oil Temperature Sensor (G509)
