Controls, Housing

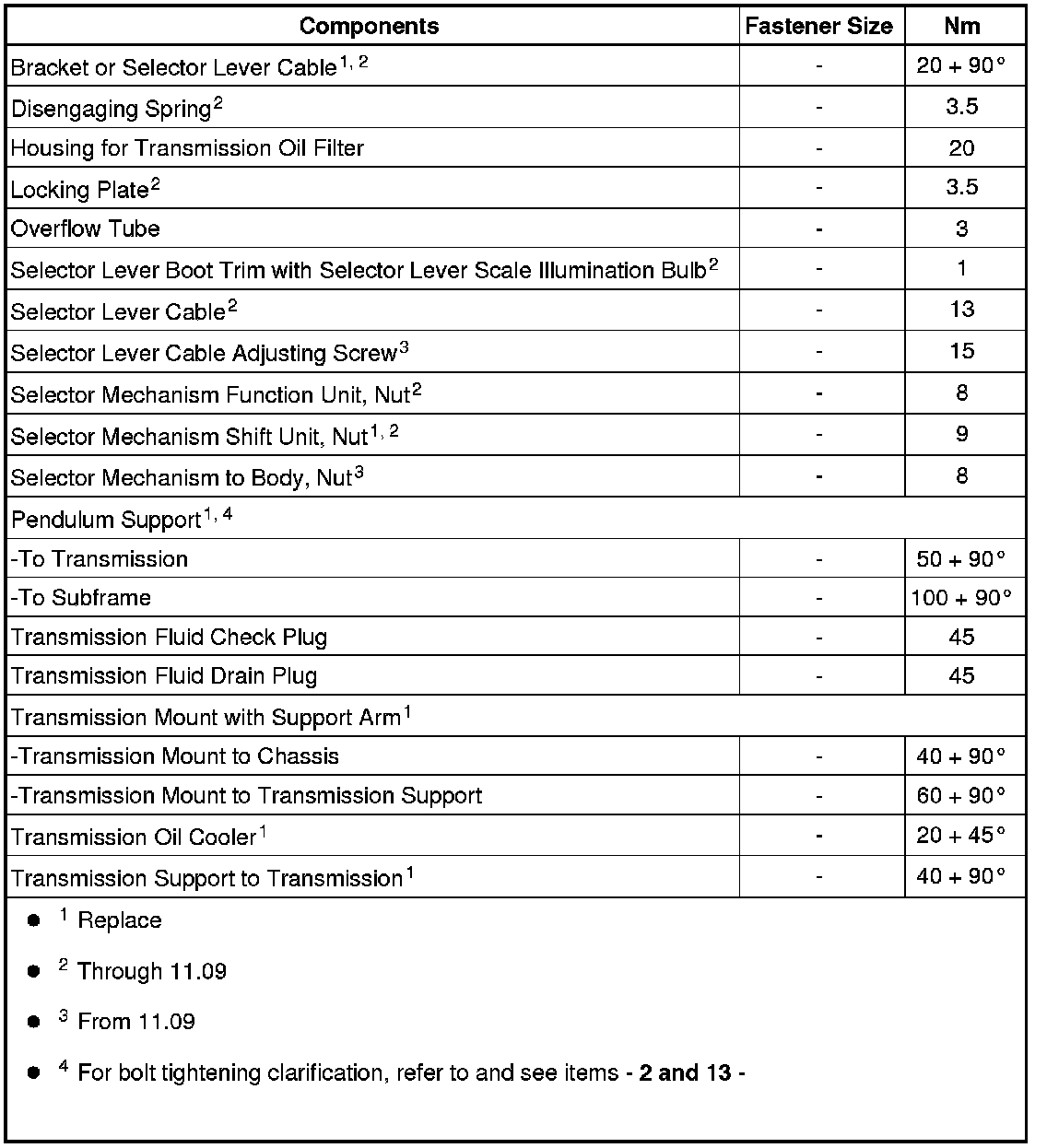

Fastener Tightening Specifications

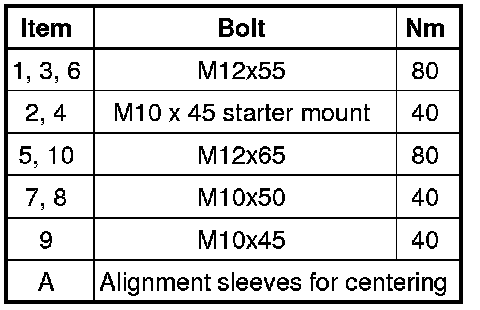

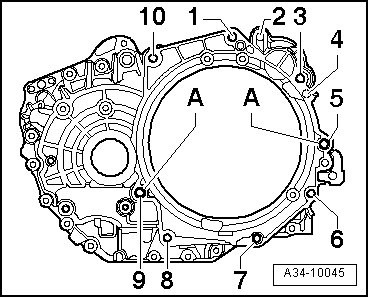

S-Tronic Transmission Mount to 2.0L TFSI

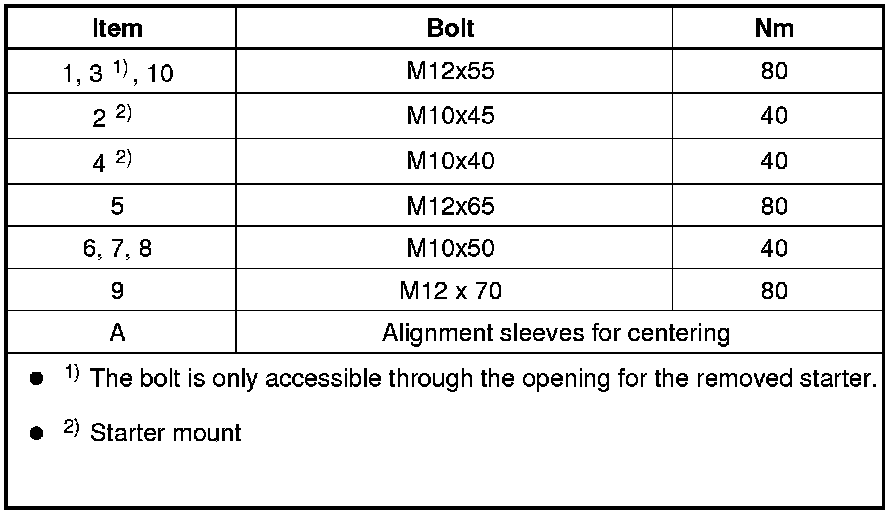

S-Tronic Transmission Mount to 3.2L MPI Engine
