Tail Lamp Bulb Carrier

Tail Lamp Bulb Carrier

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- Remove the tail lamps. Refer to => [ Tail Lamp ] Tail Lamp.

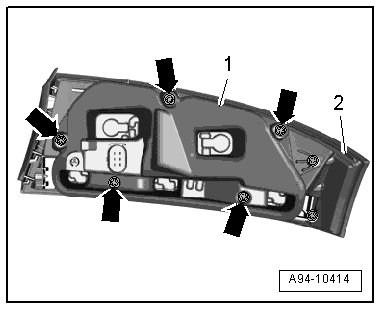

- Remove screws - arrows -.

- Remove bulb carrier - 1 - from tail lamp unit - 2 -.

- Turn the bulbs - 1 - or pull the bulbs - 3 - out of the socket - 2 -.






Installing

• Tightening specification, refer to => [ Tail Lamps Overview ] Description and Operation.

Install in reverse order of removal. Note the following:

- Insert the new bulb into the socket without touching the bulb with bare hands.
