Fog Lamp Bulbs (L22)/(L23)

Fog Lamp Bulbs (L22)/(L23)

Removing






- Remove fog lamp. Refer to => [ Fog Lamp ] Fog Lamp.

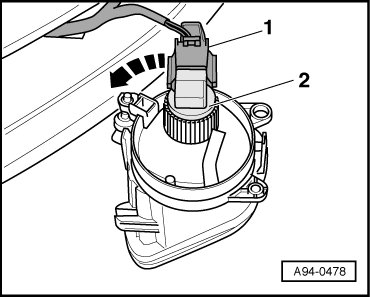

- Disconnect the electrical connector - 1 - on the light.

- Rotate the bulb - 2 - counterclockwise - arrow - and remove it from the fog lamp housing.

Installing

Install in reverse order of removal. Note the following:

- Insert new bulb (H11 - 12V, 55 W) in housing without touching glass bulb with bare hand.

- Rotate the bulb clockwise to secure.

- Adjusting fog lamps, refer to => [ Headlamps Checking and Adjusting Conditions ] Headlamps Checking and Adjusting Conditions.
