Fog/Driving Lamp: Adjustments

Fog Lamps, Adjusting

Procedure






- Complete test and adjustment requirements. Refer to => [ Headlamps Checking and Adjusting Conditions ] Headlamps Checking and Adjusting Conditions.

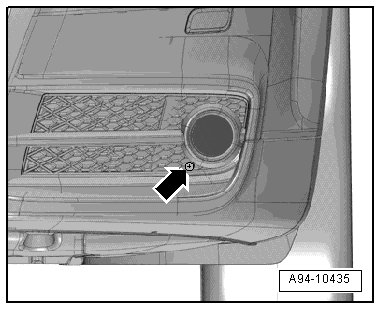

- To adjust headlamp range, turn adjusting screw - arrow -.

• Angle dimension: 20 cm (7.9 inch).

• Side adjustment is not intended.
