Drive Belts, Mounts, Brackets and Accessories: Service and Repair

Accessory Assembly Bracket

Removing

- Remove the ribbed belt tensioner. Refer to => [ Ribbed Belt Tensioner ] Service and Repair.

- Remove generator.

- Remove the front noise insulation - 1 -.






- Remove fan shroud. Refer to => [ Fan Shroud ] Service and Repair.

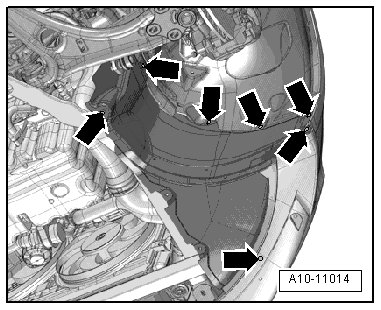

- Remove the right noise insulation - arrows -.






- Remove the noise insulation frame - arrow - and the rear noise insulation.






Vehicles with Air Conditioning (A/C):

- Disconnect solenoid clutch electrical connector - 1 - on A/C compressor.






Risk of damaging refrigerant lines and hoses.

• Do not stretch, kink or bend refrigerant lines and hoses.

- Remove the bolts - arrows -.

- Remove the A/C compressor from the bracket and tie it to the lock carrier.

All Vehicles:

- Remove bolts - 1 to 6 - and remove accessory assembly bracket.






Installing

• Tightening specifications, refer to => [ Accessory Assembly Bracket - Tightening
Specifications and Tightening Sequence ] Ribbed Belt Drive and Accessory Bracket Assembly Overview.

Installation is done is reverse order, observe the following:

- Install A/C compressor.

- Install fan shroud. Refer to => [ Fan Shroud ] Service and Repair.

- Install the noise insulation frame and the noise insulation.

- Install generator.

- Install the ribbed belt tensioner. Refer to => [ Ribbed Belt Tensioner ] Service and Repair.
