Coolant Thermostat with Housing

Coolant Thermostat with Housing

Removing

- Remove generator.

- Remove the coolant pipes. Refer to => [ Front Coolant Pipes 1 and 2 ] Front Coolant Pipes 1 and 2.

- Disconnect the connector - 2 - from the Engine Coolant Temperature (ECT) Sensor on Radiator (G83).






• Ignore - 1 -.

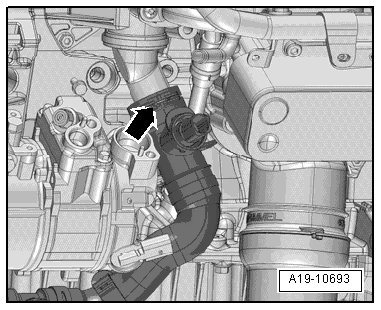

- Raise the retaining clip and remove the coolant hose - arrow - from the coolant thermostat with housing.

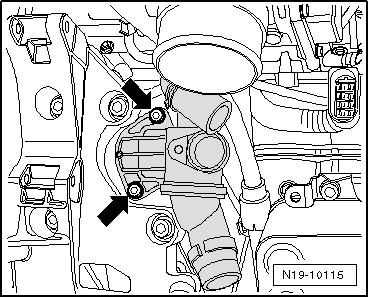

- Remove the bolts - arrows - and the coolant thermostat with the housing.






Installing

Installation is carried out in the reverse order while noting the following:

• Tightening specifications, refer to => [ Coolant Pump and Coolant Thermostat with Housing Overview ] Coolant Pump and Coolant Thermostat With Housing Overview.

• Replace seals and sealing rings.

• Secure all hose connections with hose clamps appropriate for the model. Refer to the electronic parts catalog ETKA.

- Clean and smooth the O-ring sealing surface.

- Coat the O-ring with coolant additive.

- Install the coolant pipes. Refer to => [ Front Coolant Pipes 1 and 2 ] Front Coolant Pipes 1 and 2.

- Install generator.

- Fill with coolant => [ Filling ] Service and Repair.
