Left and Right Parking Brake Trim, Vehicles with Center Armrest

Left and Right Parking Brake Trim, Vehicles with Center Armrest

Removing






- Remove rear center console. Refer to => [ Rear Center Console ] Rear Center Console.

- Remove parking brake handle trim. Refer to => [ Parking Brake Handle Trim, Vehicles with Center Armrest ] Parking Brake Handle Trim, Vehicles with Center Armrest.

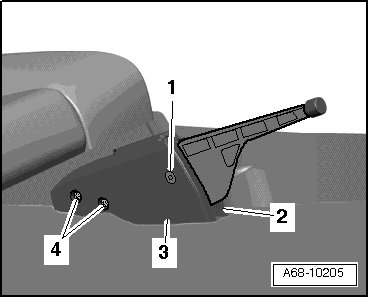

- Remove the bolts - 4 -.

- Pry out cover cap - 1 - with a screwdriver and remove bolt.

- Remove parking brake lever trim - 2 and 3 -.

Installation

Installation is reverse of removal, but note the following.

For the correct tightening specifications; refer to => [ Parking Brake Handle Trim Assembly Overview ] Description and Operation.
