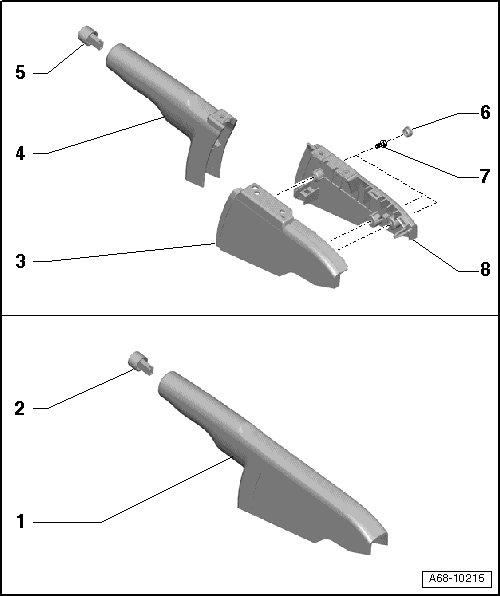

Parking Brake Handle Trim Assembly Overview

Parking Brake Handle Trim Assembly Overview






1 Parking Brake Handle Trim

• For vehicles without center armrest

• Removing and Installing, refer to => [ Parking Brake Handle Trim, Vehicles without Center Armrest ] Parking Brake Handle Trim, Vehicles without Center Armrest

2 Push button

• Remove after removing parking brake handle trim

3 Left parking brake trim

• Vehicles with center armrest

• Removing and Installing, refer to => [ Left and Right Parking Brake Trim, Vehicles with Center Armrest ] Left and Right Parking Brake Trim, Vehicles with Center Armrest

4 Parking Brake Handle Trim

• Vehicles with center armrest

• Removing and Installing, refer to => [ Parking Brake Handle Trim, Vehicles with Center Armrest ] Parking Brake Handle Trim, Vehicles with Center Armrest

5 Push button

• Remove after removing parking brake handle trim

6 Cover

• Vehicles with center armrest

7 Bolt

• Vehicles with center armrest

• 2.5 Nm

• Quantity: 3

8 Right parking brake trim

• Vehicles with center armrest

• Removing and Installing, refer to => [ Left and Right Parking Brake Trim, Vehicles with Center Armrest ] Left and Right Parking Brake Trim, Vehicles with Center Armrest
