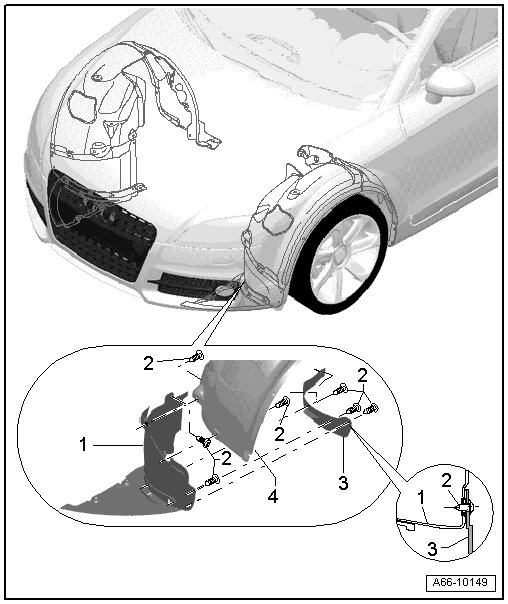

Front Wheel Spoiler

Front Wheel Spoiler






1 Lower part of wheel housing liner

• Wheel spoiler removed

• Remove bolts - 2 - from bottom part and remove under upper part of wheel housing liner.

2 Bolt

• 2 Nm

3 Wheel spoiler

- To remove, remove bolts - 2 -.

4 Upper part of wheel housing liner
