Sill and Tunnel Side Trim Assembly Overview

Sill and Tunnel Side Trim Assembly Overview

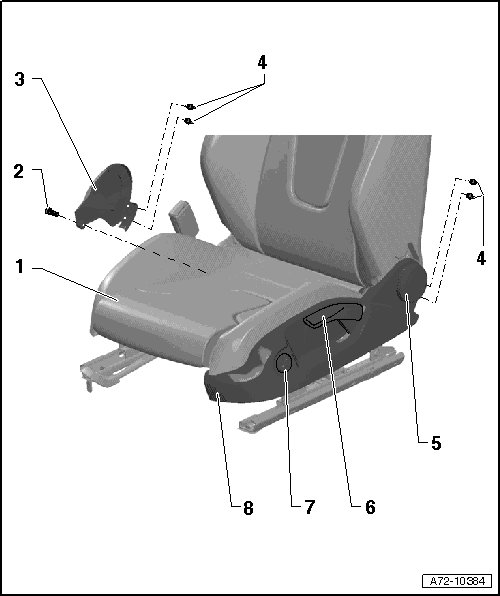

1 Front seat

2 Bolt

• 2.5 Nm

3 Tunnel side trim

• Can only be replaced with seat removed

• Removing and Installing, refer to => [ Tunnel Side Trim ] Tunnel Side Trim

4 Expanding rivet

• Quantity: 4

5 Backrest adjusting wheel

• Removing and Installing, refer to => [ Backrest Adjusting Wheel ] Backrest Adjusting Wheel

6 Seat height adjustment handle

• Removing and Installing, refer to => [ Seat Height Adjustment Handle ] Seat Height Adjustment Handle

7 Driver seat lumbar support adjustment switch (E176) or front passenger seat lumbar support adjustment switch (E177)

• Vehicles with

• Assembly Overview, refer to => [ Front Seat Lumbar Support Adjustment Switches E176 and E177 Assembly Overview ] Front Seat Lumbar Support Adjustment Switches E176 and E177 Assembly Overview

8 Sill-side trim

• Can be replaced with seat installed

• Removing and Installing, refer to => [ Sill Side Trim ] Sill Side Trim
