Pump Housing

Pump Housing

Removing

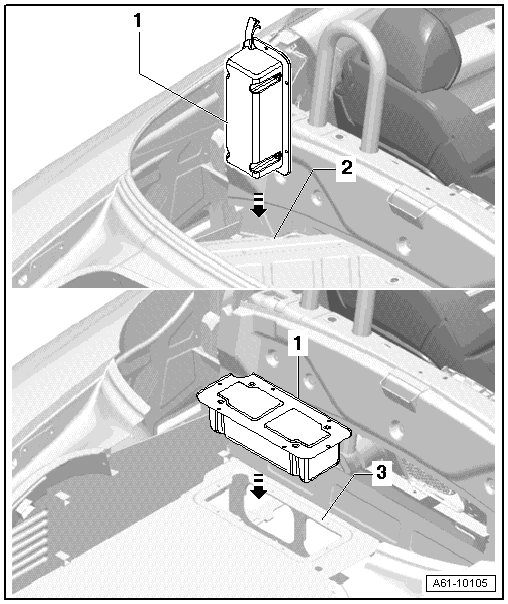

1 Pump housing

• Remove pump housing from body crossmember - 3 -.

• Remove pump housing as shown upward out of opening in convertible top compartment base.

• Pump housing, installing, refer to => [ Hydraulic System Assembly Overview ] Hydraulic System Assembly Overview

2 Convertible top compartment floor

3 Body crossmember
