Manual Convertible Top







Manual Convertible Top

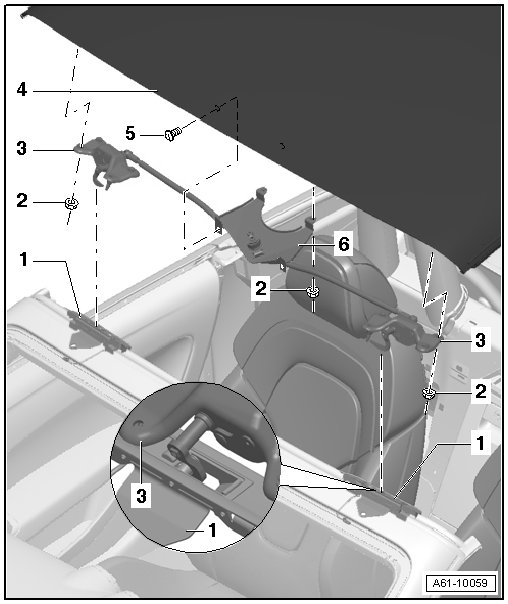

Removing






1 End plate

2 Nut

• 9 Nm

3 Convertible top lock

4 Convertible top

5 Bolt

• 9 Nm

6 Convertible top latch

• Front cover removed.
