Headliner Retaining Strip on Bracket

Headliner Retaining Strip on Bracket

Installing






• The bracket has two grooves.

• The heating element cable for the rear window heater must be routed in the upper groove.

• The screws for securing the retaining strip must be screwed into the lower groove.

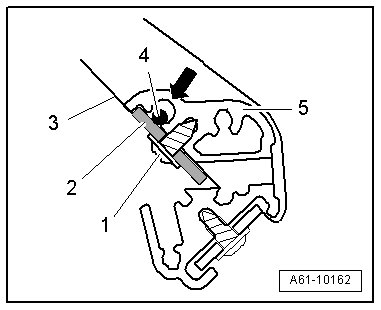

- Rear window heater cable - 4 - must be routed in the upper groove - arrow - on bracket - 5 - as shown.

- Secure retaining strip - 2 - for convertible top headliner - 3 - with screws - 1 - in the lower groove.
