Part 2

Front Convertible Top Compartment Trim

Special tools, testers and auxiliary items required

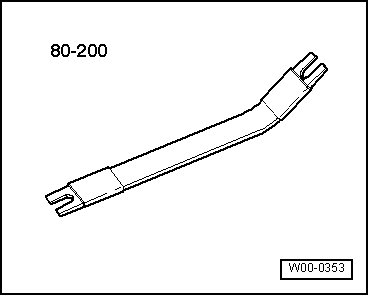

• Pry lever (80 - 200)






Removing

- Remove rear bulkhead cover. Refer to => [ Rear Bulkhead Cover ] Rear Bulkhead Cover.

- Position convertible top or linkage removal flaps so that expanding clips - A - can be unclipped with Pry Lever (80 - 200).






• Keep the expanding clips - A - from falling down.

- Unclip remaining expanding clips and remove front convertible top compartment trim - B -.

Installation

Install in reverse order of removal.
