Headliner

Headliner

Special tools, testers and auxiliary items required

• Pry lever (80-200)






• Special hook (3370)






Removing

- Remove the upper A-pillar trim. Refer to => [ A-Pillar Upper Trim ] A-Pillar Upper Trim.

- Remove the C-pillar trim. Refer to => [ C-Pillar Trim ] C-pillar Trim.

- Remove the roof panel trim. Refer to => [ Roof Panel Trim ] Roof Panel Trim.

- Remove sun visors. Refer to => [ Sun Visors ] Sun Visors.

- Remove sun visor center brackets. Refer to => [ Sun Visor Center Mount ] Sun Visor Center Mount.

- Remove interior lights.

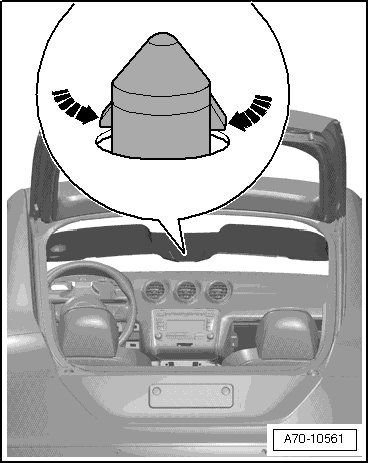

- Remove the clips - arrows - on the rear mount.

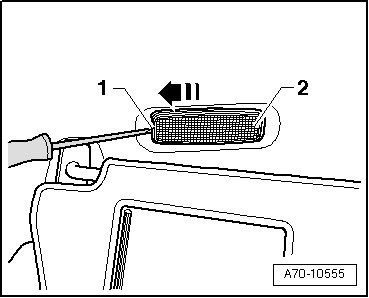

- Pry out outer vanity mirror light - 2 - at - 1 -.






- Remove vanity mirror light - 2 - in - direction of arrow - and disconnect connector.

- Move seats forward and down as far as stops.

- Adjust backrest back as far as stop.

• The headliner must be replaced if bent.

• 2 technicians are needed to disconnect the last connections and remove headliner.

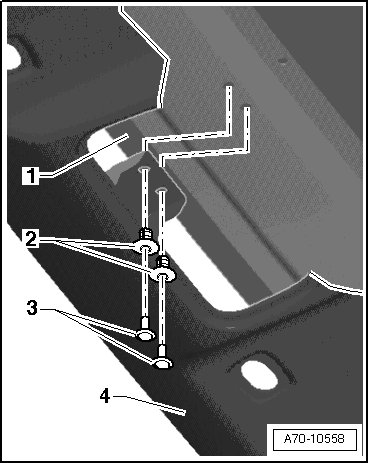

- Pry pins - 3 - out of sleeves - 2 - using Pry Lever (80-200).






- Remove sleeves - 2 - from headliner - 4 - and roof - 1 -.

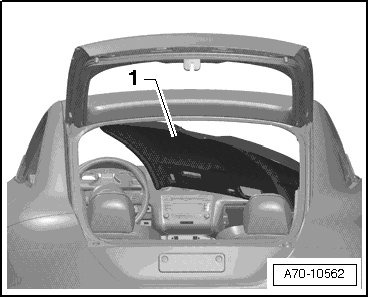

- Remove headliner - 1 - through passenger's door.






Installation

Install in reverse order of removal. Note the following:

- align headliner before securing.
