Decorative Frame, Vehicles with Manual Transmission

Decorative Frame, Vehicles with Manual Transmission

Removing






- Remove center console trim. Refer to => [ Center Console Trim, Vehicles with Manual Transmission ] Center Console Trim, Vehicles with Manual Transmission.

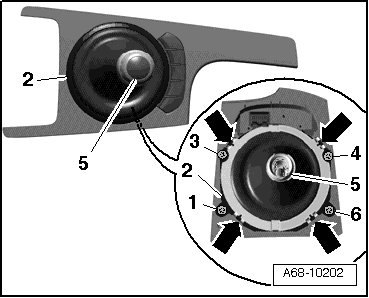

- Remove the gearshift lever boot - arrows - and gearshift knob - 5 -.

- Remove bolts - 1, 3, 4, 6 - and remove decorative frame - 2 -.

Installation

Install in reverse order of removal.

For the correct tightening specifications; refer to => [ Center Console Assembly Overview ] Description and Operation.
