License Plate Bracket

License Plate Bracket

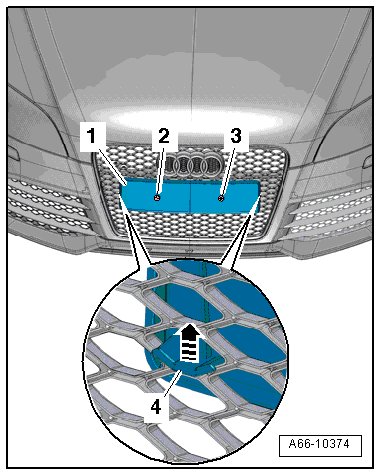

Removing






- Remove the license plate.

- Remove the bolts - 2 - and - 3 -.

- Detach license plate bracket - 1 - upward out of the honeycomb-structured grille - arrow - while detaching clips - 4 -.

- Remove the license plate bracket.

Installation

• For the correct tightening specifications, refer to => [ License Plate Bracket Assembly Overview ] Description and Operation.

Install in reverse order of removal. Note the following:

- The license plate bracket must be fully inserted into the honeycomb-structured grille.
