Front Door Lights and Switches Overview

Front Door Lights and Switches Overview

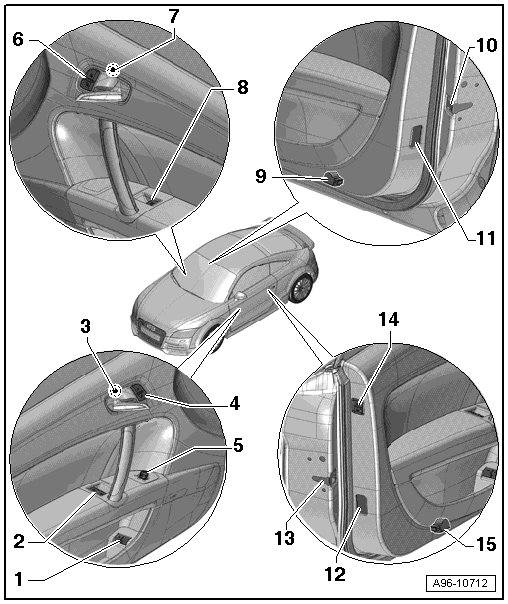

1 Rear Lid Remote Control Lock Switch (E233) / Fuel Tank Lid Unlock Button (E319)

• Removing and installing, refer to => [ Rear Lid Remote Control Lock Switch (E233)/Fuel Tank Lid Unlock Button (E319) ] Rear Lid Remote Control Lock Switch (E233)/Fuel Tank Lid Unlock Button (E319).

2 Power Window Control Head In Driver Door (E512)

• With Left Front Window Regulator Switch (E40) and Driver Right Front Window Regulator Switch (E81).

• Window regulator switch, removing and installing, refer to => [ Window Regulator Switches (E512)/(E107) ] Window Regulator Switches (E512)/(E107).

3 Door Opener Illumination Bulb, Driver Side (L146)

• Removing and installing, refer to => [ Inner Door Handle Bulb (L146)/(L147) ] Inner Door Handle Bulb (L146)/(L147).

4 Driver Interior Locking Button (E308)

• Removing and installing, refer to => [ Interior Locking Buttons (E308)/(E309) ] Interior Locking Buttons (E308)/(E309).

5 Mirror Adjustment Switch (E43) or Mirror (with fold-away function) Switch (E168)

• Removing and installing, refer to => [ Mirror Adjustment Switch (E43) or Folding Mirror Adjustment Switch (E168) ] Mirror Adjustment Switch (E43) or Folding Mirror Adjustment Switch (E168).

6 Front Passenger Interior Locking Button (E309)

• Removing and installing, refer to => [ Interior Locking Buttons (E308)/(E309) ] Interior Locking Buttons (E308)/(E309).

7 Door Opener Illumination Bulb, Front Passenger Side (L147)

• Removing and installing, refer to => [ Inner Door Handle Bulb (L146)/(L147) ] Inner Door Handle Bulb (L146)/(L147).

8 Front Passenger Door Window Regulator Switch (E107)

• Removing and installing, refer to => [ Window Regulator Switches (E512)/(E107) ] Window Regulator Switches (E512)/(E107).

9 Right Front Entry Lamp (W32)

• Removing and installing, refer to => [ Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36) ] Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36).

10 Front Passenger Door Contact Switch (F3)

• Integrated in the door lock. Cannot be replaced separately if faulty.

11 Front Passenger Door Warning Lamp (W36)

• 12V, 3 W

• Removing and installing, refer to => [ Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36) ] Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36).

12 Driver Door Warning Lamp (W30)

• 12V, 3 W

• Removing and installing, refer to => [ Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36) ] Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36).

13 Driver Door Contact Switch (F2)

• Integrated in the door lock. Cannot be replaced separately if faulty.

14 Passenger Compartment Monitoring Switch (E183) / Alarm System Deactivation Switch (E217).

• Removing and installing, refer to => [ Passenger Compartment Monitoring Switch (E183)/Alarm System Deactivation Switch (E217) ] Passenger Compartment Monitoring Switch (E183)/Alarm System Deactivation Switch (E217).

15 Left Front Entry Light (W31)

• Removing and installing, refer to => [ Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36) ] Front Entry Lamps (W31)/(W32) and Door Warning Lamps (W30)/(W36).
