Front Door Panel: Description and Operation

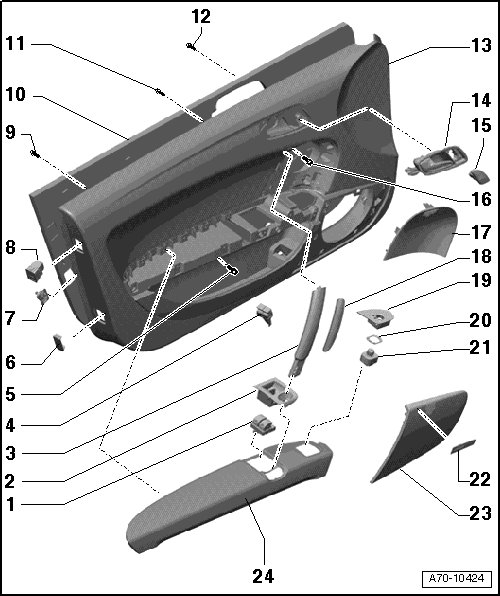

Door Trim Assembly Overview






1 Window regulator switch

• Driver side: power window control head in driver door (E512)

• Front passenger side: front passenger door window regulator switch (E107)

2 Switch mount

• For the window regulator switch

• Removing and Installing, refer to => [ Window Regulator Switch Mount ] Window Regulator Switch Mount

3 Pull handle

• Removing and Installing, refer to => [ Pull Handle ] Pull Handle

4 Rear Lid Remote Control Lock Switch (E233) and Fuel Tank Lid Unlock Button (E319)

5 Bolt

• For door trim

• Tightening specification - 2.8 Nm

6 Passive rear reflector

7 Clip with seal

• For door trim

• For proper crash sensor (pressure sensor) function, ensure door does not leak.

• The door trim clips seal the system. Replace the clips if necessary.

• Follow the safety precautions for front side airbag crash sensors (pressure sensors), refer to => [ Front Side Airbag Crash Sensors Safety Precautions ] Front Side Airbag Crash Sensors Safety Precautions.

8 Passenger Compartment Monitoring Switch (E183) / Alarm System -Off- Switch (E217)

9 Bolt

• For armrest

• Tightening specification - 1.3 Nm

10 Insulation

11 Bolt

• For pull handle

• Tightening specification - 3.3 Nm

12 Bolt

• For inside door release mechanism

• Tightening specification - 1.3 Nm

13 Door Trim

• Removing and Installing, refer to => [ Door Trim ] Door Trim

14 Interior door mechanism

• Removing and Installing, refer to => [ Inside Door Release Mechanism ] Inside Door Release Mechanism

15 Driver interior locking switch (E150) (central locking button)

16 Bolt

• For door trim

• Tightening specification - 2.8 Nm

17 Mid-range speaker trim

• Removing and Installing, refer to => [ Mid-Range Speaker Trim ] Mid-Range Speaker Trim

18 Pull handle trim

• Depending on version

• Removing and Installing, refer to => [ Pull Handle Trim ] Pull Handle Trim

19 Switch mount

• For the mirror adjustment switch

• Removing and Installing, refer to => [ Mirror Adjustment Switch Mount ] Mirror Adjustment Switch Mount

20 Symbol trim

21 Mirror Adjustment Switch (E43)

22 Trim panel

• Only with BOSE sound system

• Removing and Installing, refer to => [ BOSE Sound System Trim ] BOSE Sound System Trim

23 Bass speaker trim

• Removing and Installing, refer to => [ Bass Speaker Trim ] Bass Speaker Trim

24 Armrest

• Removing and Installing, refer to => [ Armrest ] Armrest
