Ultrasonic Interior Monitoring Overview

Component Locations: Central Locking / Anti-Theft Systems

Ultrasonic Interior Monitoring Overview



Note:
• Anti-Theft Immobilizer Control Module -J362- is integrated into Instrument Cluster Control Module -J285-

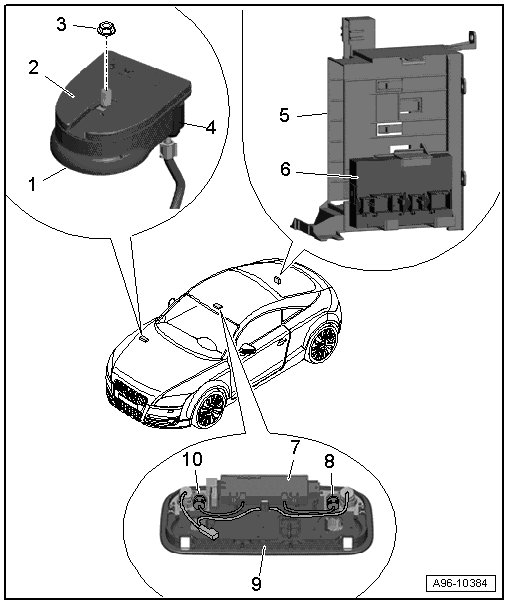

1 - Alarm Horn -H12-
• Location => [ Alarm Horn ] See Image Below.

6 - Comfort System Central Control Module -J393-

7 - Anti-Theft Alarm System Sensor -G578-
• Location => [ Anti-Theft Alarm System Sensor ] See Image Below.
• Contains :
• Vehicle Inclination Sensor -G384-

• Interior Monitoring Sensor -G273-


8 - Left Interior Monitoring Individual Sensor
• Location => [ Anti-Theft Alarm System Sensor ] See Image Below.

10 - Right Interior Monitoring Individual Sensor
• Location => [ Anti-Theft Alarm System Sensor ] See Image Below.


Alarm Horn






2 - Alarm Horn -H12-
Located behind front right wheel housing liner

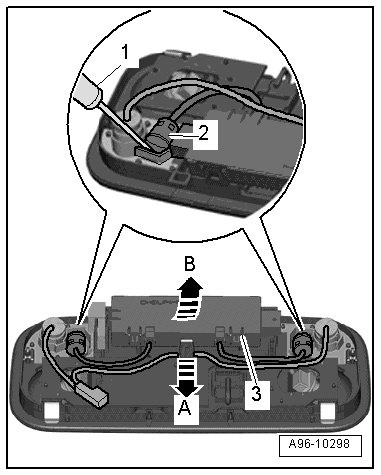

Anti-Theft Alarm System Sensor






2 - Individual Interior Monitoring Sensors
3 - Anti-Theft Alarm System Sensor -G578-
