Selector Shaft Seal

Selector Shaft Seal

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Thrust Piece (T10135)

Procedure

- Remove the bulkhead plenum chamber.

- Remove the front exhaust pipe/front muffler or front exhaust pipe or right front muffler.

- Press selector lever cable ball socket - 2 - from selector shaft lever using (80 - 200).





- Press the securing clip - 1 - off and remove the selector lever cable from the transmission.

• Do not bend or kink the selector lever cable.

- Drive out the spring pin - 1 - at the selector shaft lever - 2 - in the direction illustrated - arrow - until the lever can be removed from the selector shaft.






The selector shaft running surface could be damaged.

• Position the screwdriver carefully.

- Pierce shaft seal with a small screwdriver and pull out.





- Apply ATF to the circumference and the space between the sealing lips of the new shaft seal.

• Installation position: Open side of shaft seal faces transmission.

- Slide the shaft seal onto the selector shaft.

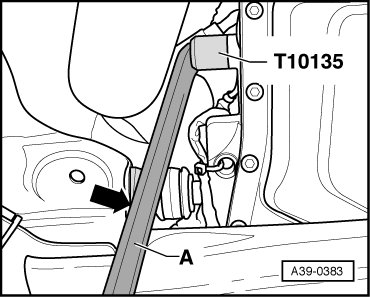

- Press the new shaft seal on as far as the stop using the (T10135) and assembly lever - A -. Make sure the shaft seal does not tilt when doing this.





- Drive spring pin back onto removed selector shaft lever in opposite direction to lever.

- Slide the lever onto the selector shaft and drive in the spring pin.

- Reconnect exhaust system and ensure it is not under stress.

- Install the bulkhead plenum chamber.
