Central Valves Assembly Overview

Central Valves Assembly Overview

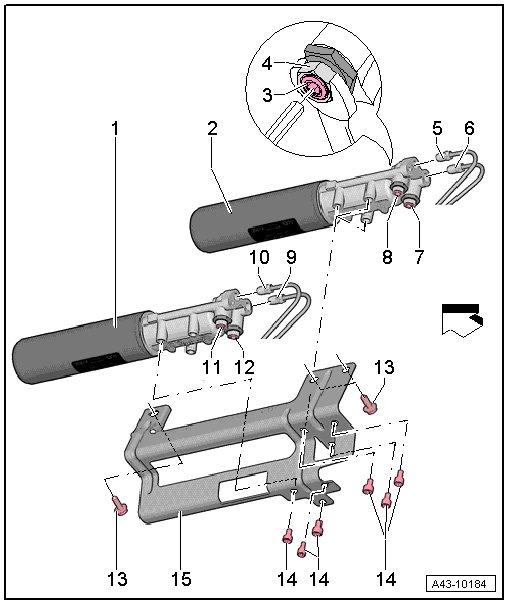

1 Front Left and Rear Right Central Valve

• Removing and installing, refer to => [ Central Valve ]

2 Front Left and Rear Left Central Valve

• Removing and installing, refer to => [ Central Valve ]

3 Shut-Off Valve

• 5 Nm

• To shut off, turn clockwise all the way.

• To open, turn counter-clockwise all the way.

4 Shut-Off Valve Locking Nut

• 12 Nm

5 DRC Line to Rear Left Shock Absorber

• 14 Nm

• Green marking.

6 DRC Line to the Right Front Shock Absorber

• 14 Nm

• White marking.

7 Shut-Off Valve

• 5 Nm

• To shut off, turn clockwise all the way.

• To open, turn counter-clockwise all the way.

8 Shut-Off Valve

• 5 Nm

• To shut off, turn clockwise all the way.

• To open, turn counter-clockwise all the way.

9 DRC Line to Rear Right Shock Absorber

• 14 Nm

• Blue marking

10 DRC Line to Left Front Shock Absorber

• 14 Nm

• Yellow marking

11 Shut-Off Valve

• 5 Nm

• To shut off, turn clockwise all the way.

• To open, turn counter-clockwise all the way.

12 Shut-Off Valve

• 5 Nm

• To shut off, turn clockwise all the way.

• To open, turn counter-clockwise all the way.

13 Bolt

• 20 Nm

14 Bolt

• 20 Nm

15 Retaining Bracket

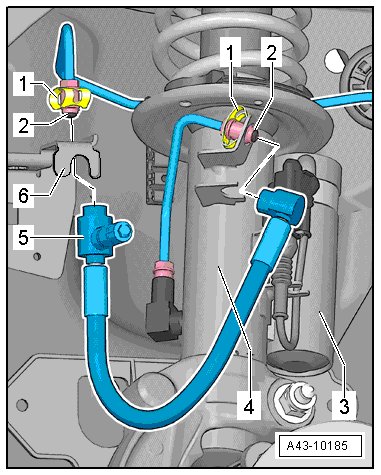

Front Suspension Strut






- 1 - Clamp

- 2 - Union nut, 14 Nm

- 3 - Additional element with motor, installed on vehicles with variable damping

- 4 - DRC - shock absorber

- 5 - Extract/fill valve with hose line, make sure it is free of tension when installed

- 6 - Bracket

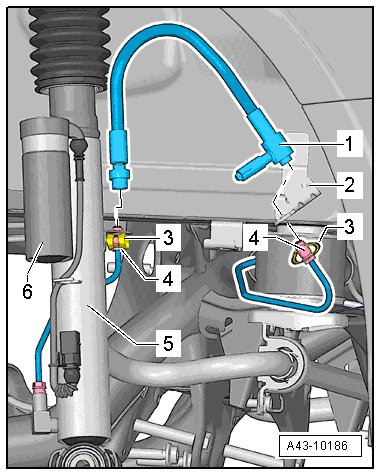

Rear Shock Absorber






- 1 - Extract/fill valve with hose line, make sure it is free of tension when installed.

- 2 - Bracket

- 3 - Clamp

- 4 - Union nut, 14 Nm

- 5 - DRC - shock absorber

- 6 - Additional element with motor, installed on vehicles with variable damping.
