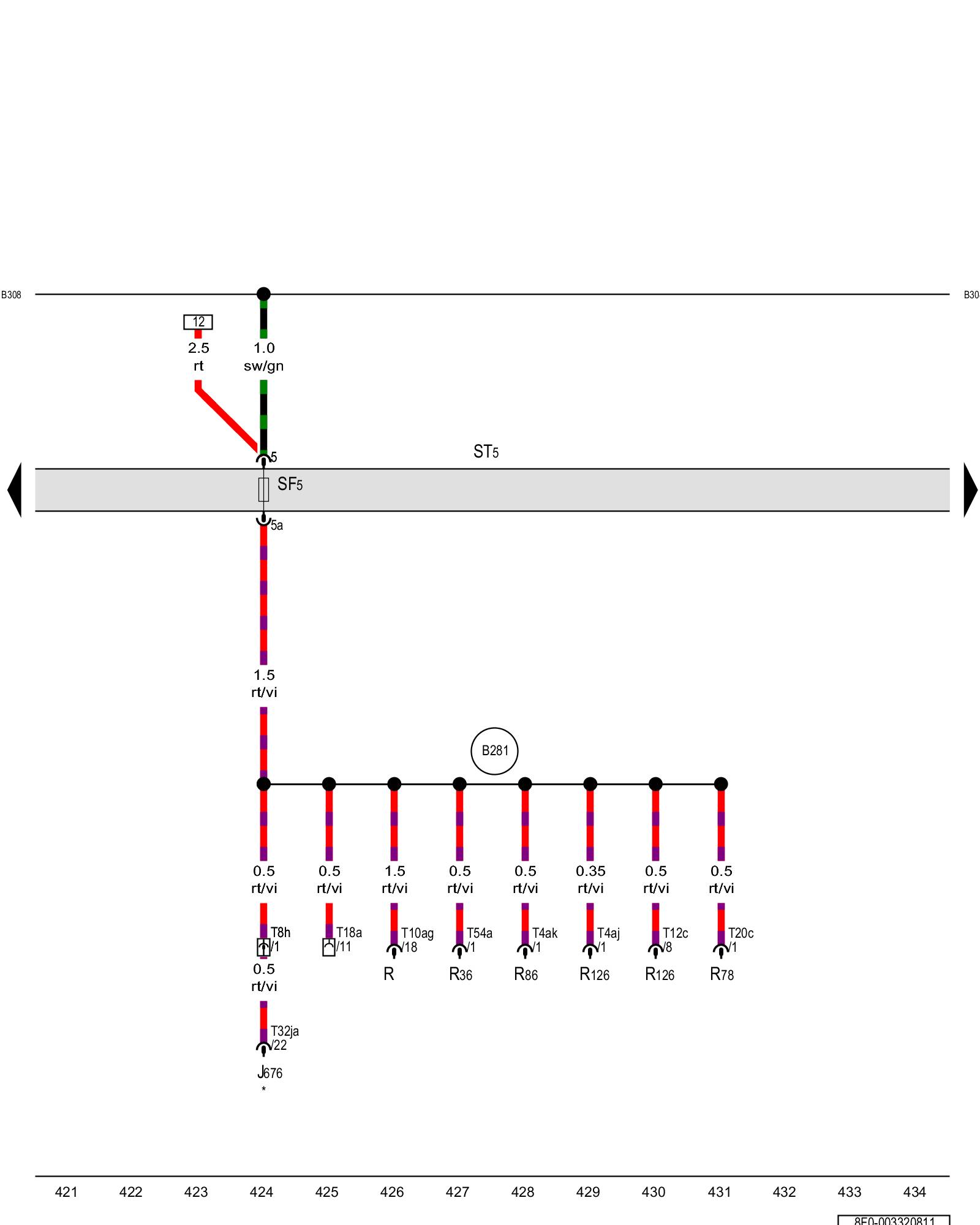

Diagram 3/32 (Tracks 421-434)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel 5, Fuse 5 (on fuse panel F)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J676 - Chip card reader control module Overview of Control Modules in interior of vehicle

R - Radio Overview of Control Modules in interior of vehicle

R36 - Telephone transceiver Overview of Control Modules in interior of vehicle

R78 - TV tuner Control Modules in rear part of vehicle, overview

R86 - Cellular telephone amplifier Control Modules in rear part of vehicle, overview

R126 - Telephone baseplate

ST5 - Fuse panel 5

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

T4aj - 4-pin connector

T4ak - 4-pin connector

T8h - 8-pin connector

T10ag - 10-pin connector

T12c - 12-pin connector

T18a - 18-pin connector, black

T20c - 20-pin connector

T32ja - 32-pin connector Chip Card Reader Control Module -J676-

T54a - 54-pin connector

(B281) - Positive connection 5 (15a) (in main wiring harness)

(B308) - Positive connection 12 (30) (in main wiring harness)

* - Only for vehicles with Japan equipment

Previous Diagram 3/31 (Tracks 407-420)

Next Diagram 3/33 (Tracks 435-448)
