Relay /Fuse Panel F -SF-

Fuses

Relay /Fuse Panel F -SF-


Component Location Relay /Fuse Panel F -SF- :
In luggage compartment, behind side trim on right





ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 on (black) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (brown) ]

ST4 - Fuse Carrier 4, Fuses => [ Fuses in Fuse Carrier ST4 on (red) ]

ST5 - Fuse Carrier 5, Fuses => [ Fuses in Fuse Carrier ST5 on (black) ]

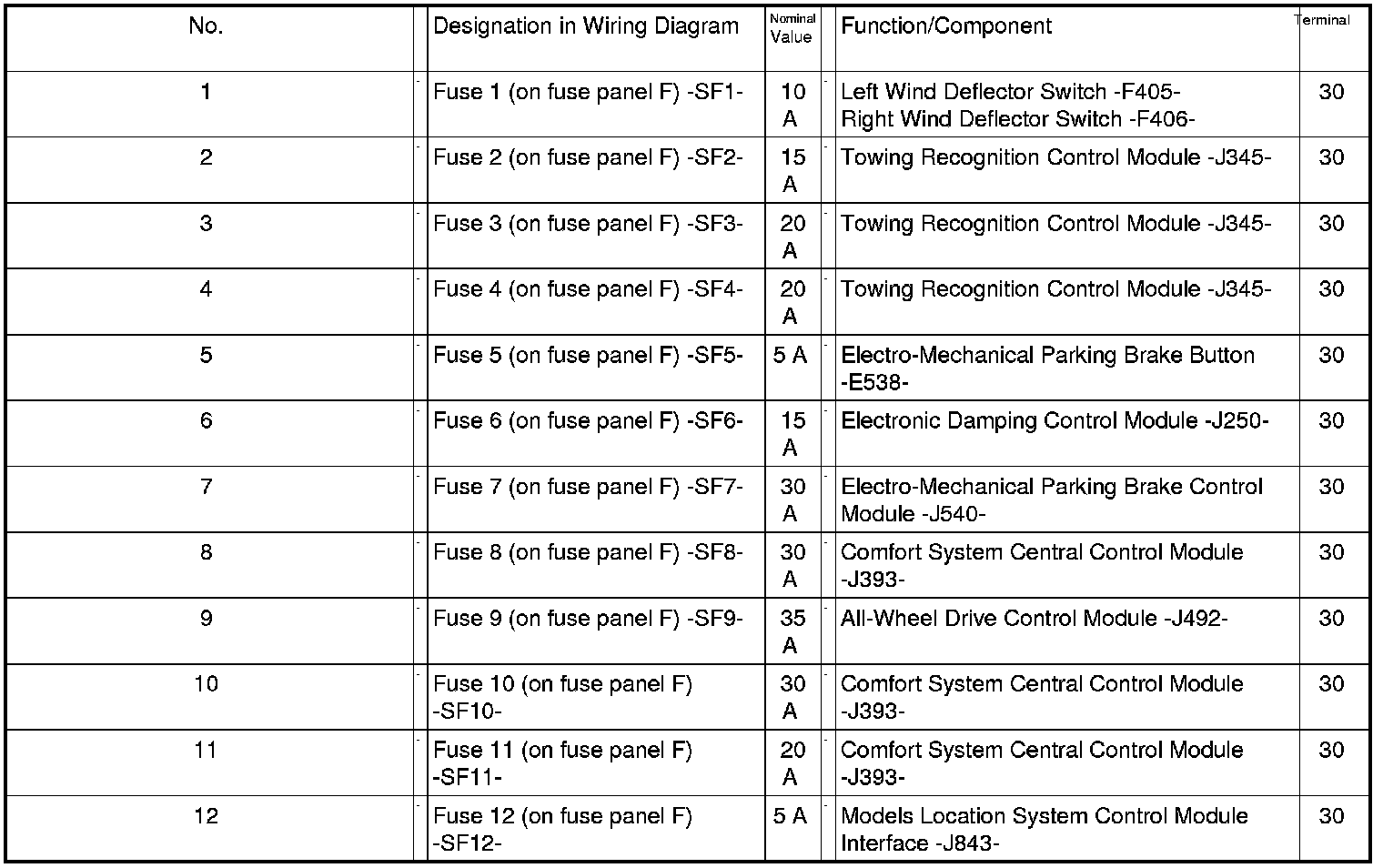

Fuses in Fuse Carrier ST1 on Fuse Panel F -SF- (black)


Fuse Colours
35 A - green-blue
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige

Note:
• Fuses -SF1- through -SF4- in fuse carrier 1 -ST1- are maxi fuses.

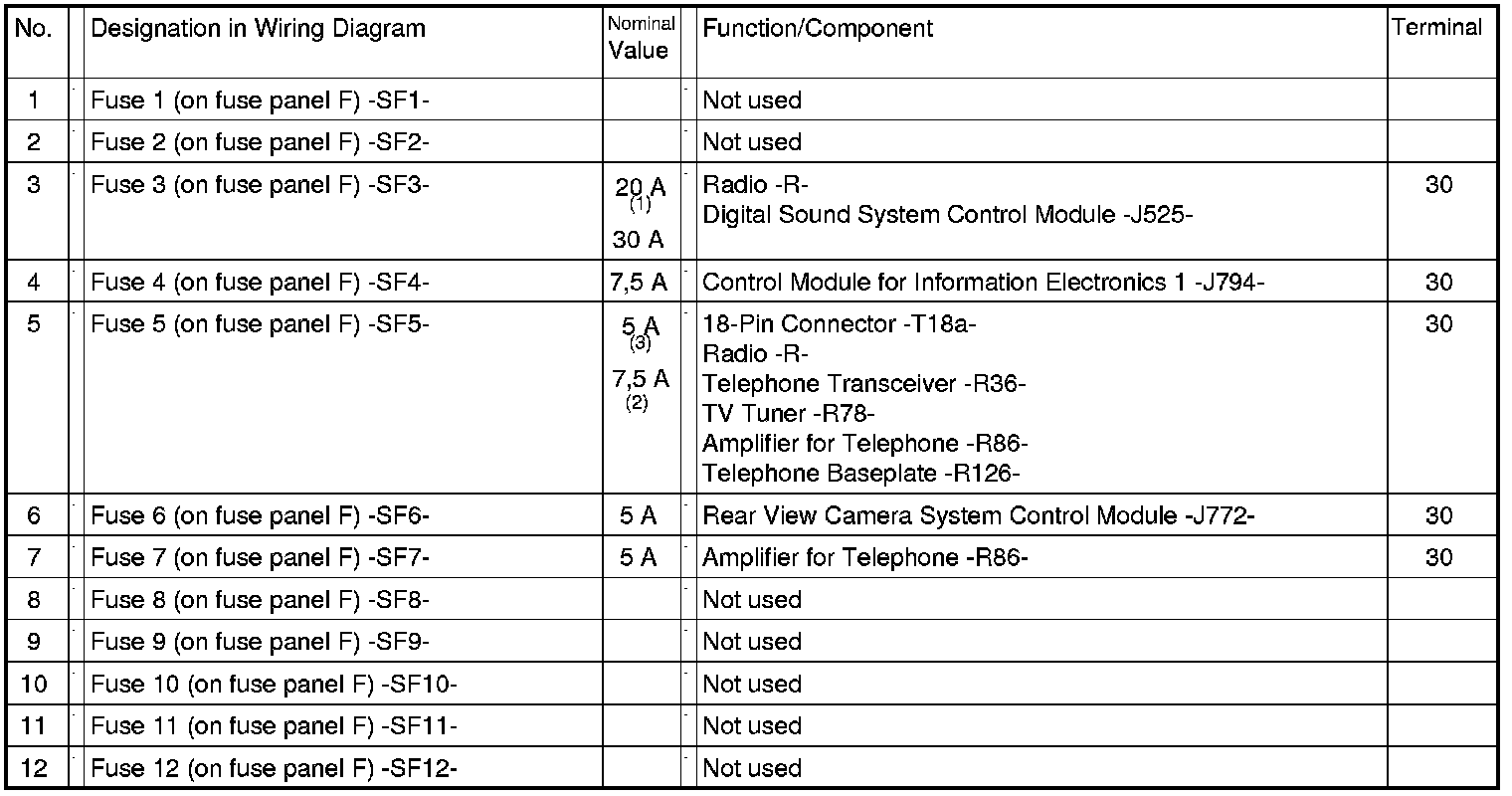

Fuses in Fuse Carrier ST2 on Fuse Panel F -SF- (black)

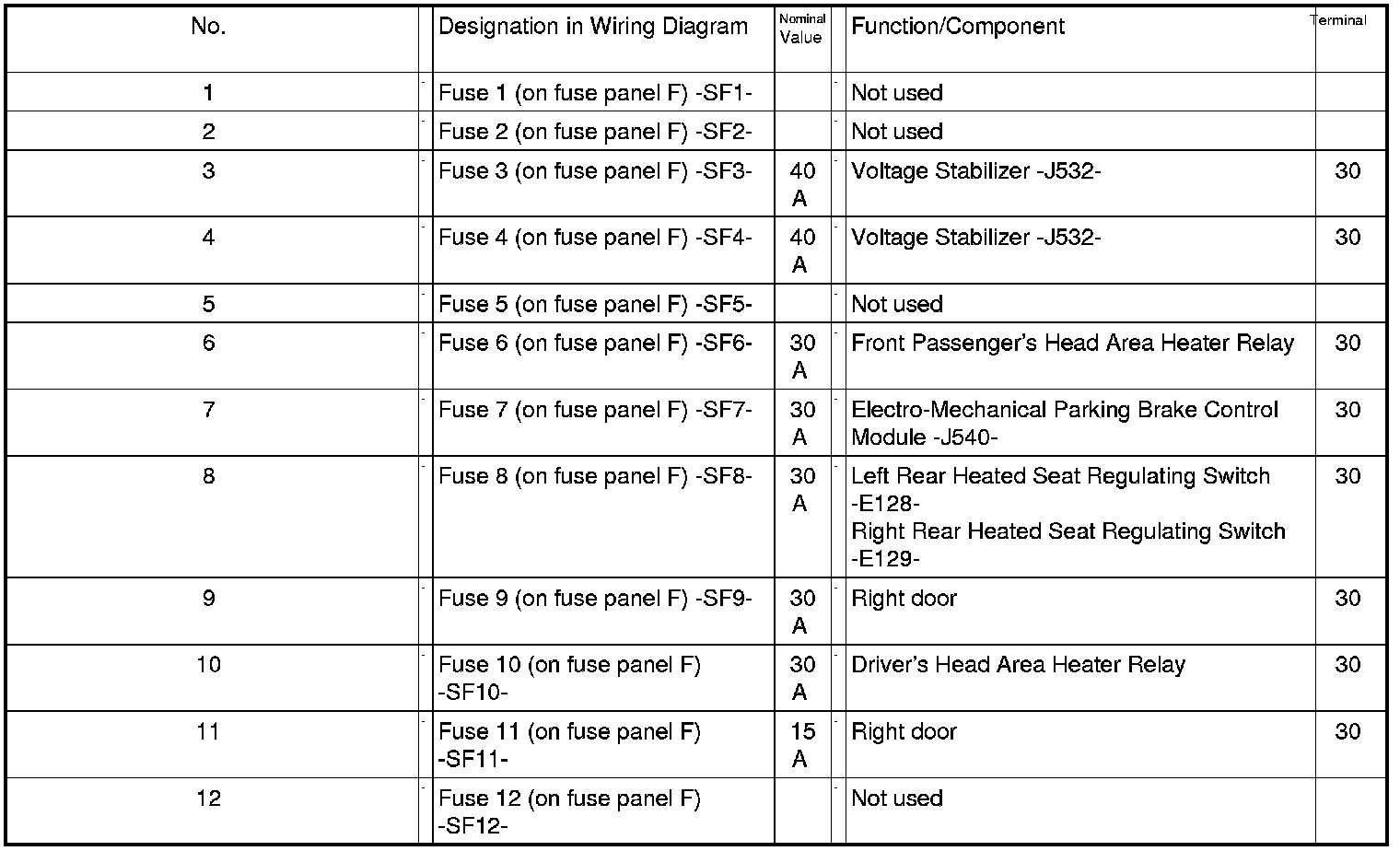

Fuses in Fuse Carrier ST3 on Fuse Panel F -SF- (brown)

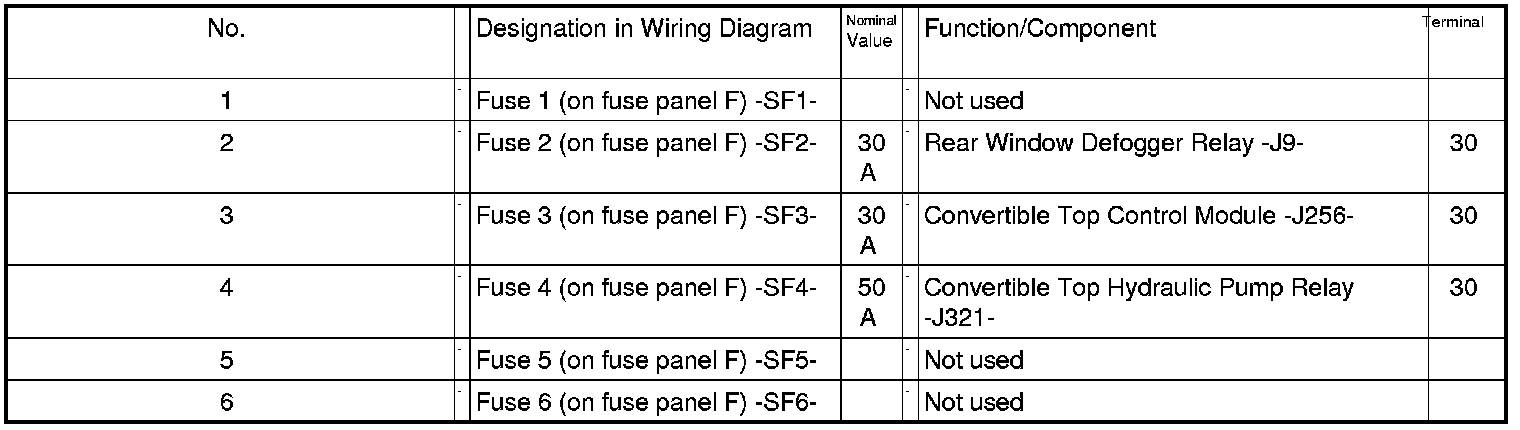

Fuses in Fuse Carrier ST4 on Fuse Panel F -SF- (red)

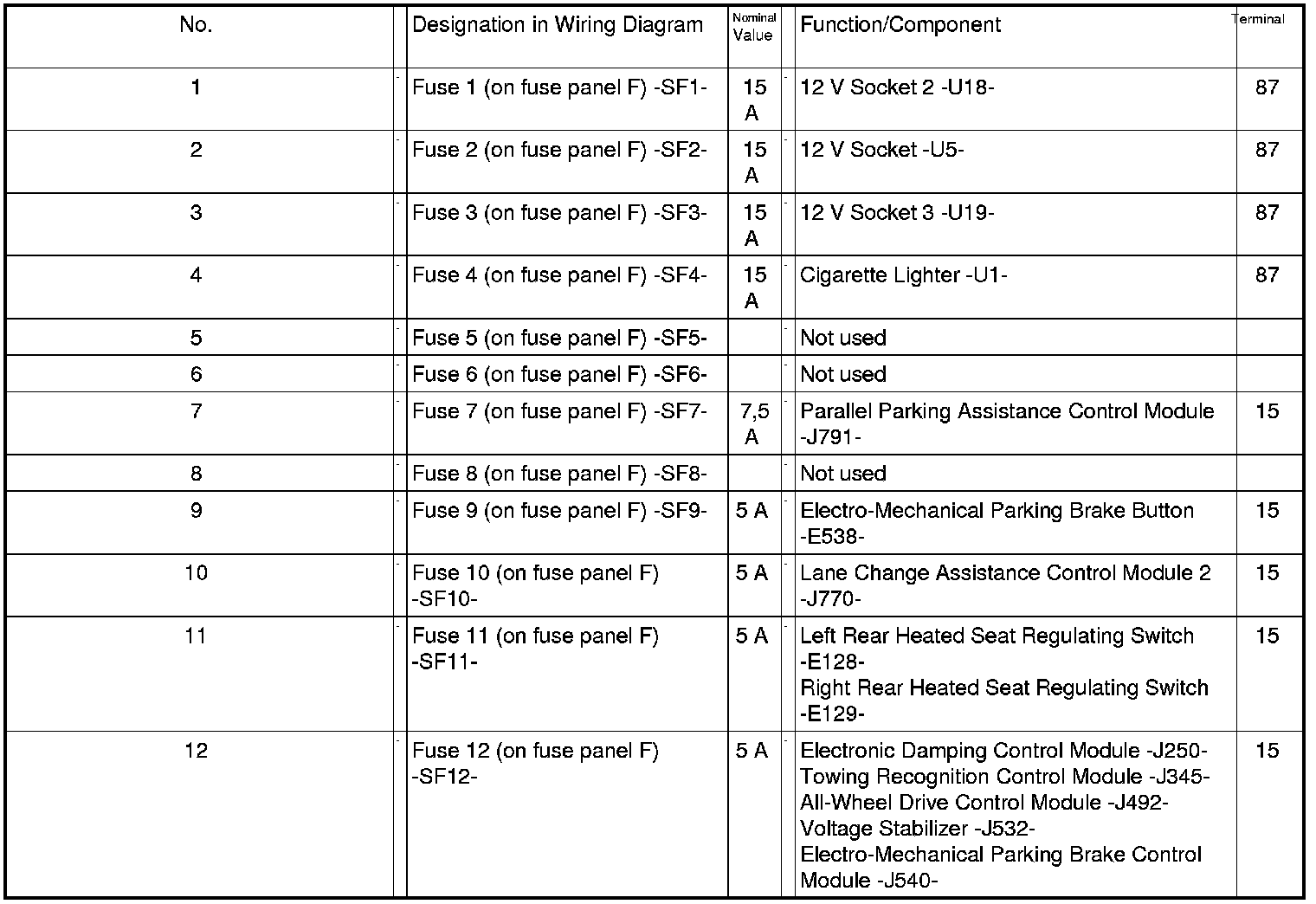

Fuses in Fuse Carrier ST5 on Fuse Panel F -SF- (black)


1) Only models with radio (CAN) and sound system Basic (through November 2009)
2) Applicable through April 2010
3) Applicable from May 2010
