Overview of Fuses
Fuses

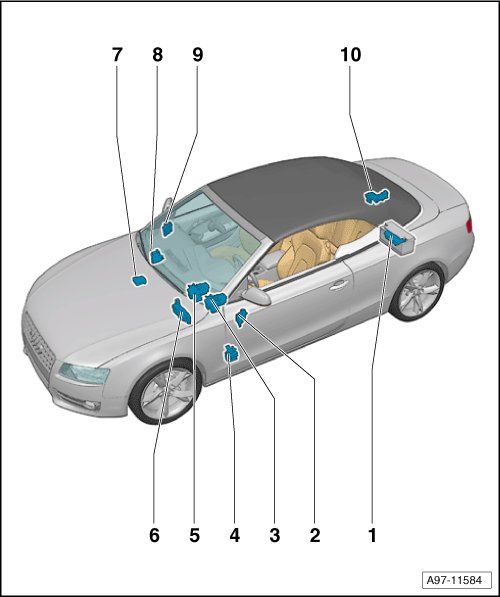

Overview of Fuses
1 - Fuse Panel A -SA-
• Component Location: => Fuse Panel A -SA-
2 - Fuse Panel C -SC-
• Component Location for models with left-hand drive => Fuse Panel C -SC-
• Component Location for models with right-hand drive => Fuse Panel C -SC-
3 - Relay / fuse panel with Vehicle Electrical System Control Module -J519-
• Component Location for models with left-hand drive => [ Relay / fuse panel with ] Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-
• Component Location for models with right-hand drive => Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-
4 - 6-Pin connector station A-pillar, driver's side
• Component Location for models with left-hand drive => [ 6-Pin connector station A-pillar, driver's side ] 6-Pin Connector Station A-pillar, Driver's Side
• Component Location for models with right-hand drive => 6-Pin Connector Station A-pillar, Driver's Side
5 - 3-Pin relay / fuse panel
• Component Location for models with left-hand drive => [ 3-Pin relay / fuse panel ] 3-Pin Relay / Fuse Panel
• Component Location for models with right-hand drive => 3-Pin Relay / Fuse Panel
6 - Relay /Fuse Panel B -SB-
• Component Location for models with left-hand drive => [ Relay / ] Relay /fuse Panel B -SB-
• Component Location for models with right-hand drive => Relay /fuse Panel B -SB-
7 - Terminal 30 Wire Junction 2 -TV22- With Battery Jump Start Terminal -U6-
• Component Location: => [ With ] Terminal 30 Wire Junction 2 -TV22- w/ Battery Jump Start Terminal -U6-
8 - 6-Pin connector station A-pillar, front passenger's side
• Component Location for models with left-hand drive => [ 6-Pin connector station A-pillar, front passenger's side ] 6-Pin Connector Station A-pillar, Front Pass Side
• Component Location for models with right-hand drive => 6-Pin Connector Station A-pillar, Front Pass Side
9 - Fuse panel D -SD-
• Component Location for models with left-hand drive => Fuse Panel D -SD-
• Component Location for models with right-hand drive => Fuse Panel D -SD-
10 - Relay /fuse panel F -SF-
• Component Location: => [ Relay / ] Relay /Fuse Panel F -SF-
