Fuse Panel C -SC-

Fuses

Fuse Panel C -SC-

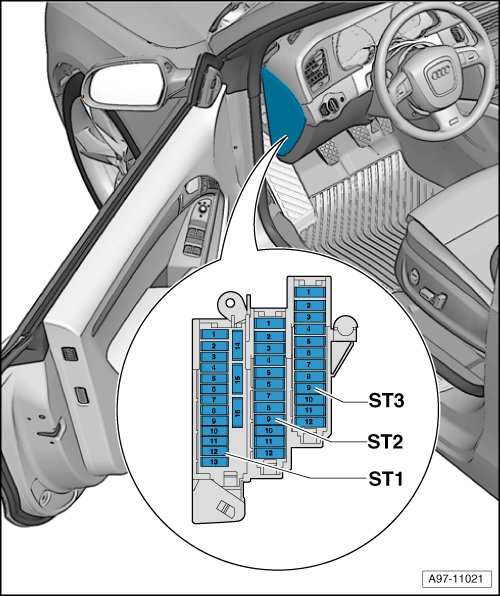

Component Location Fuse Panel C -SC- for models with left-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (red) ]

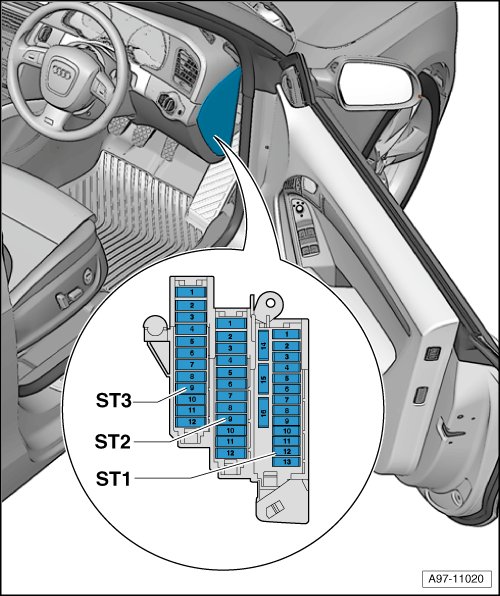

Component Location Fuse Panel C -SC- for models with right-hand drive:
Below driver's instrument panel cover

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive






ST1 - Fuse Carrier 1, Fuses => [ Fuses in Fuse Carrier ST1 on (black) ]

ST2 - Fuse Carrier 2, Fuses => [ Fuses in Fuse Carrier ST2 (brown) ]

ST3 - Fuse Carrier 3, Fuses => [ Fuses in Fuse Carrier ST3 on (red) ]

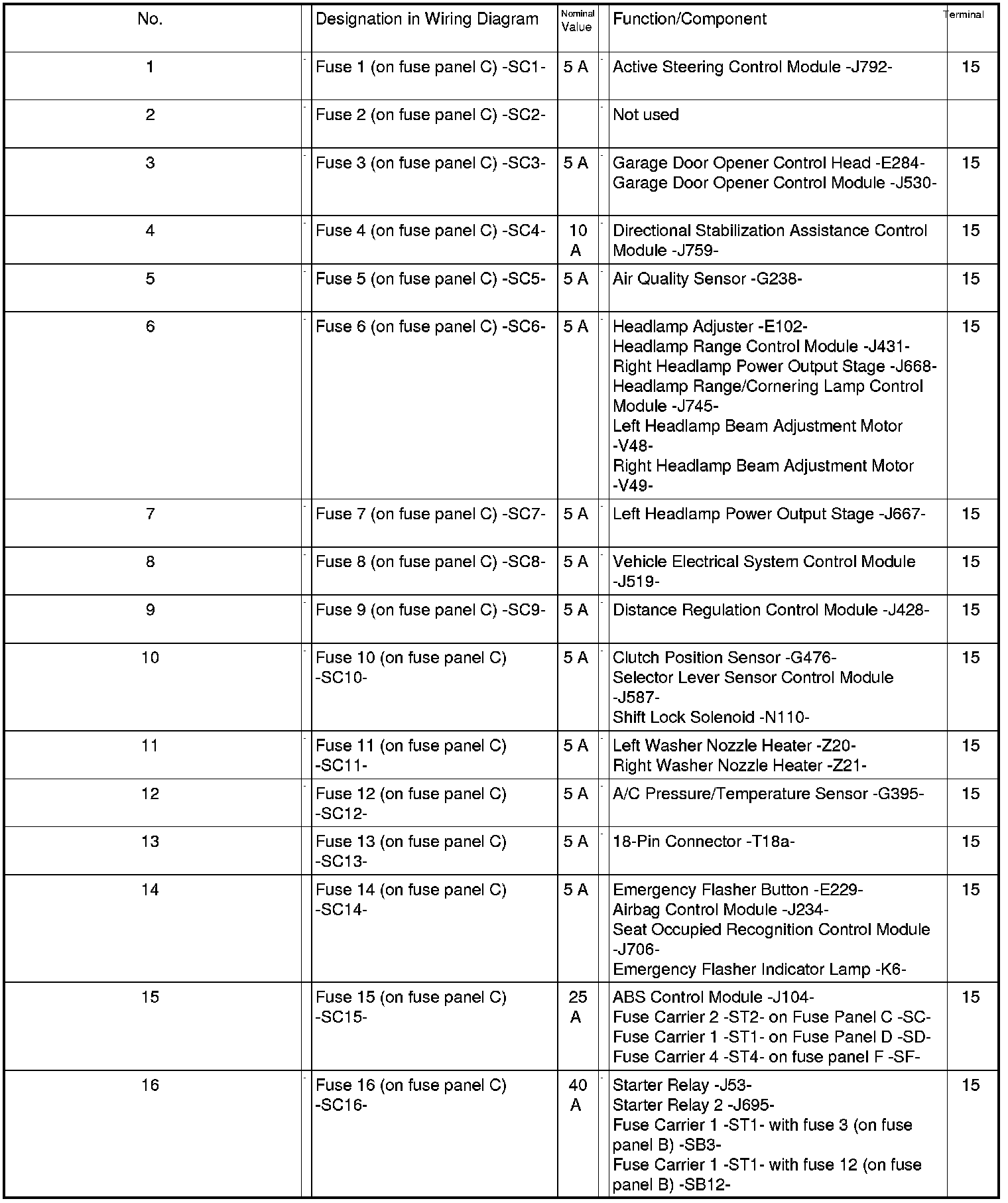

Fuses in Fuse Carrier ST1 on Fuse Panel C -SC- (black)


Fuse Colours
35 A - green-blue
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7,5 A - brown
5 A - beige

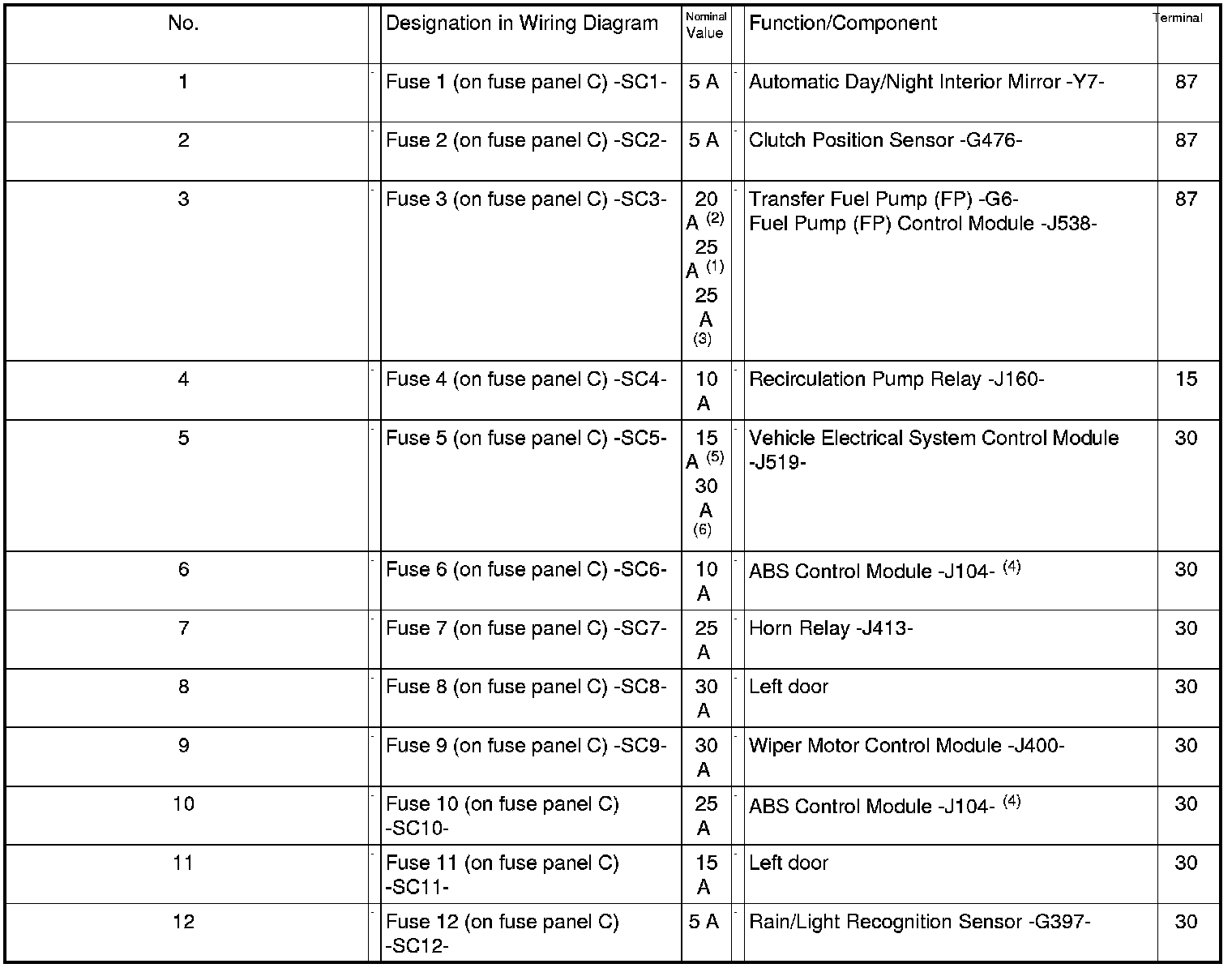

Fuses in Fuse Carrier ST2 Fuse Panel C -SC- (brown)


1) Only models with gasoline engine
2) Only models with diesel engine (without J538)
3) Only models with diesel engine (with J538)
4) Only models with left-hand drive
5) Only models without seat ventilation
6) Only models with seat ventilation

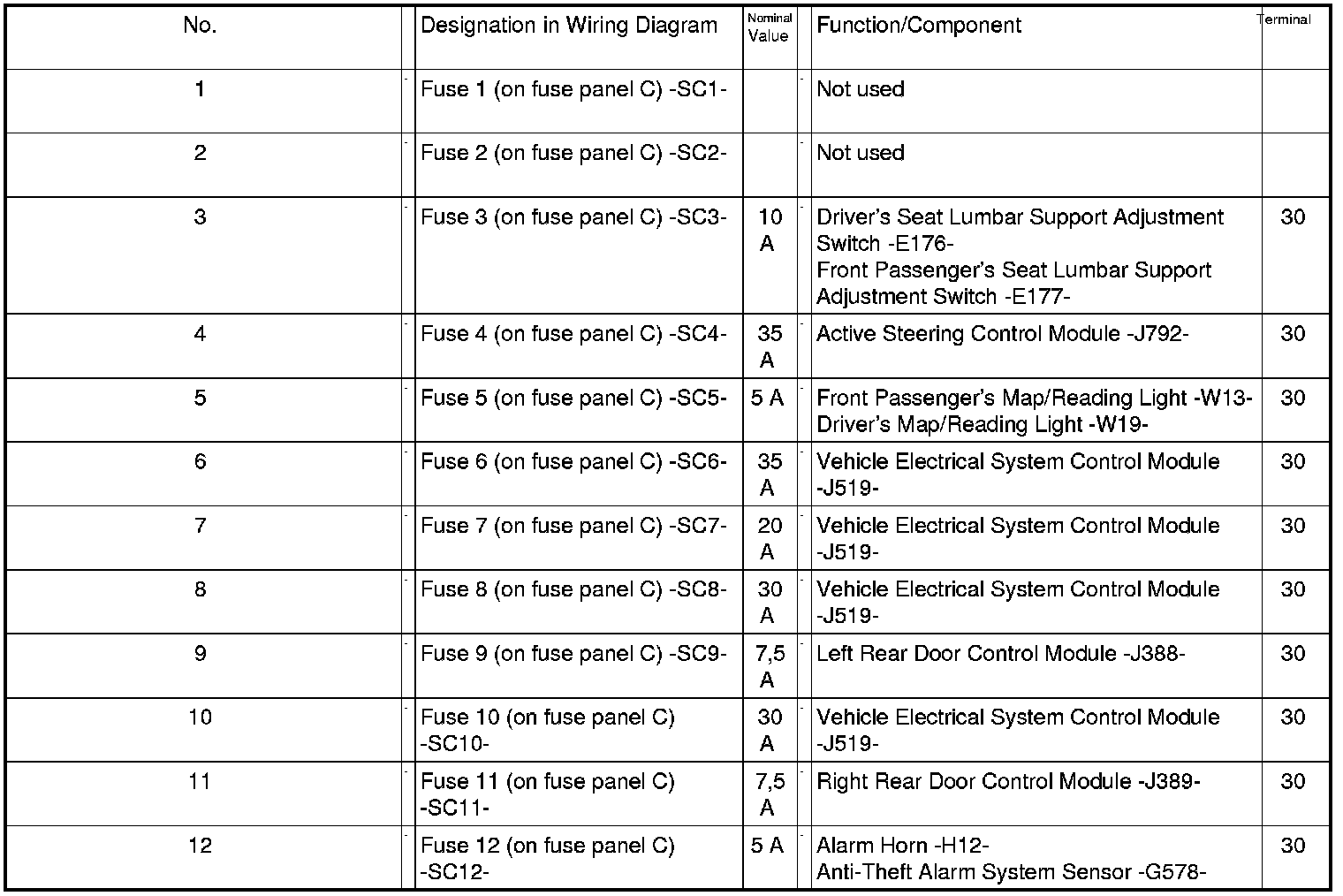

Fuses in Fuse Carrier ST3 on Fuse Panel C -SC- (red)
