6-Pin Connector Station A-pillar, Front Pass Side

Fuses

6-Pin connector station A-pillar, front passenger's side

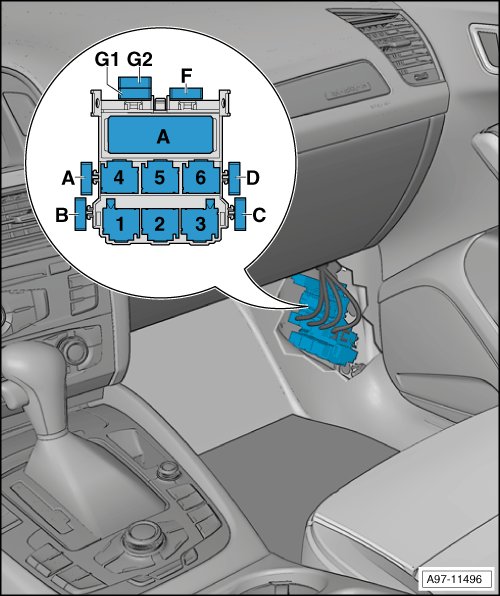

Component Location 6-Pin connector station A-pillar, front passenger's side, only models with left-hand drive:
In front passenger's footwell on A-pillar, behind side trim

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .






A - Not used

B - Not used

C - Not used

D - Not used

E - Not used

F - Not used

G1 - Not used

G2 - Not used

Component Location 6-Pin connector station A-pillar, front passenger's side, only models with right-hand drive:
In front passenger's footwell on A-pillar, behind side trim
1) Only models with right-hand drive, models with left-hand drive => [ Relay / fuse panel with ] Relay / Fuse Panel w/ Vehicle Electrical System Control Module -J519-

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .






A - Not used

B - Not used

C - Not used

D - Not used

E - Not used

F - ABS Control Module Fuse 1 -S123-, 40 A

G1 - ABS Control Module Fuse 3 -S137-, 25 A

G2 - ABS Control Module Fuse 2 -S124-, 10 A
