6-Pin Connector Station A-pillar, Driver's Side

Fuses

6-Pin connector station A-pillar, driver's side

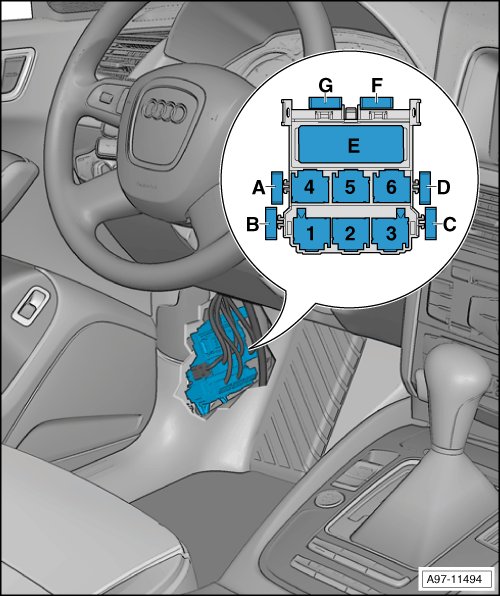

Component Location 6-Pin connector station A-pillar, driver's side, only models with left-hand drive:
In driver's footwell on A-pillar, behind side trim

Note:
• Illustration shows models with left-hand drive.

• Illustration for models with right-hand drive .

A - Not used

B - Not used

C - Not used

D - Not used

E - Not used

F - Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46- , 15 A

G - Driver's Power Seat Adjustment Circuit Breaker 1 -S44- , 15 A

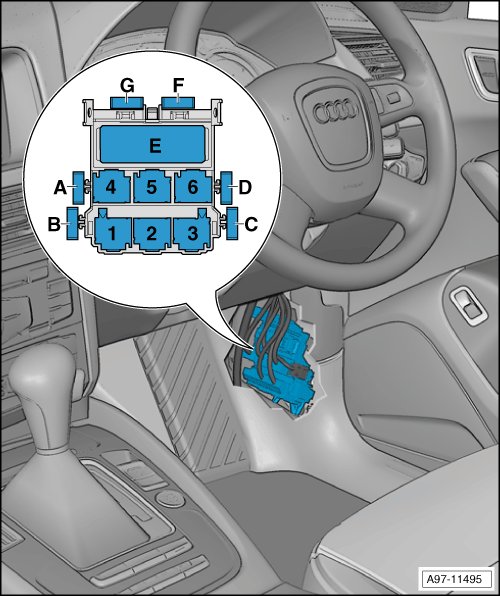

Component Location 6-Pin connector station A-pillar, driver's side, only models with right-hand drive:
In driver's footwell on A-pillar, behind side trim

Note:
• Illustration shows models with right-hand drive.

• Illustration for models with left-hand drive .
