Relay /Fuse Panel F -SF-







Relay

Relay /Fuse Panel F -SF-

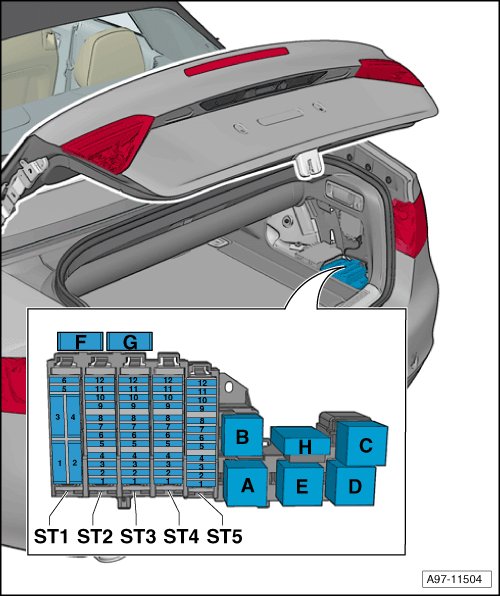

Component Location Relay /Fuse Panel F -SF- :
In luggage compartment, behind side trim on right





A - Left Head Area Heater Relay -J911-

A - Right Head Area Heater Relay -J912-

B - Not used

C - Rear Window Defogger Relay -J9-

D - Not used

E - Sockets Relay -J807-
