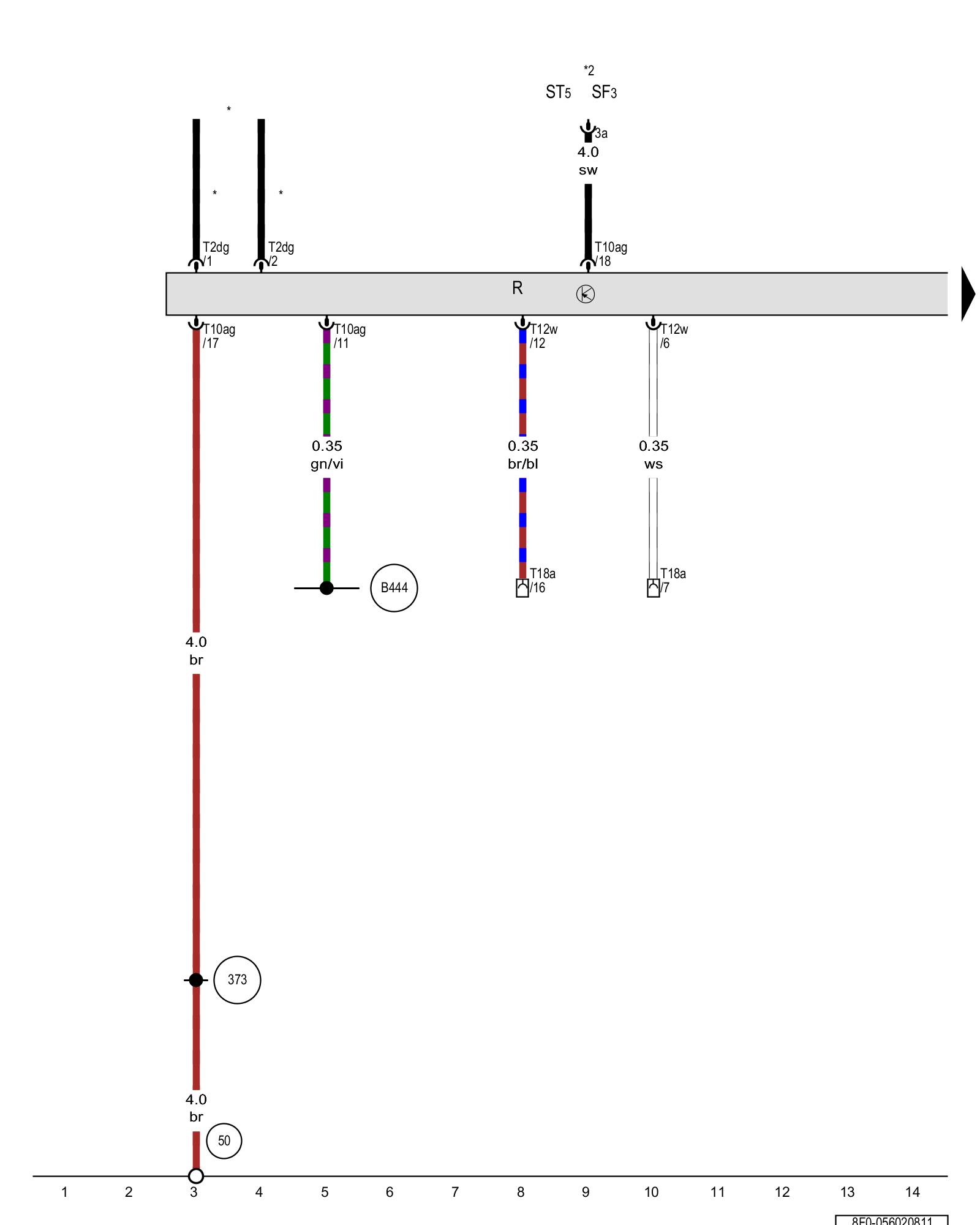

Diagram 56/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio Overview of Control Modules in interior of vehicle

SF3 - Fuse 3 (on fuse panel F) Overview Of Fuses

ST5 - Fuse panel 5

T2dg - Double connector

T10ag - 10-pin connector

T12w - 12-pin connector

T18a - 18-pin connector

(50) - Ground connection in luggage compartment, left

(373) - Ground connection 8 (in main wiring harness)

(B444) - OBD connection 1 (in main wiring harness)

* - Fiber optic cable

*2 - Refer to applicable wiring diagram for fuse positions

Next Diagram 56/3 (Tracks 15-28)
