Trim Retaining Bracket, Sill Side

Trim Retaining Bracket, Sill Side

Removing





- Remove tunnel side trim panel => [ Trim, Sill Side ] Trim, Sill Side.

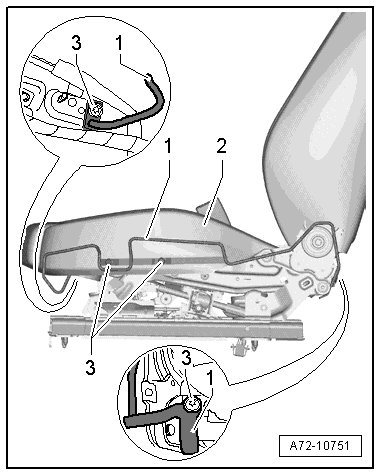

- Remove bolts - 3 - (quantity: 4).

- Remove the bracket - 1 - from the front seat - 2 -. Remove any cable ties from the retaining bracket.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Trim Retaining Bracket, Sill Side, Assembly Overview ] Trim Retaining Bracket, Sill Side, Assembly Overview.
