Seat Adjustment Control Head

Seat Adjustment Control Head

Removing





- Remove tunnel side trim panel. Refer to => [ Trim, Sill Side ] Trim, Sill Side.

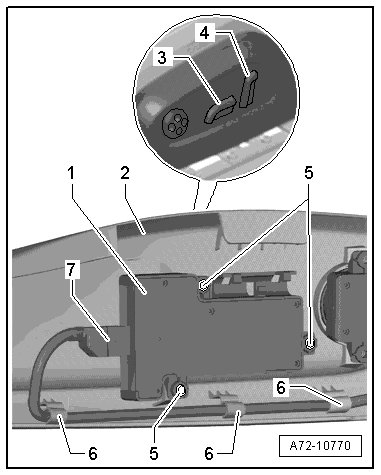

- Disengage the wire from the bracket - 6 -.

- Remove the backrest and headrest adjustment control head - 4 -. Refer to => [ Backrest and Headrest Adjustment Actuator ] Backrest and Headrest Adjustment Actuator.

- Remove the seat adjustment control head - 3 -. Refer to => [ Seat Adjustment Actuator ] Seat Adjustment Actuator.

- Remove the bolts - 5 -.

- Remove the control head - 1 - from the sill side trim - 2 -.

Installation

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Seat Adjustment Control Head Assembly Overview ] Seat Adjustment Control Head Assembly Overview.
